FX::FXIO Class Reference

FXIO is a base class for a generic i/o device. More...

#include <FXIO.h>

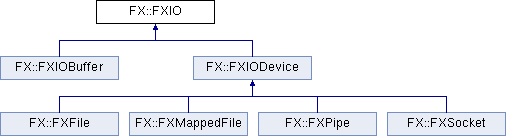

Inheritance diagram for FX::FXIO:
FX::FXIOBuffer FX::FXIODevice FX::FXFile FX::FXPipe FX::FXSocket FX::FXMemMap

List of all members.

Public Types

enum  {
  NoAccess = 0, ReadOnly = 1, WriteOnly = 2, ReadWrite = ReadOnly|WriteOnly,
  Append = 4, Truncate = 8, Create = 16, Exclusive = 32,
  NonBlocking = 64, Executable = 128, OwnHandle = 256, NoAccessTime = 512,
  Inheritable = 1024, Reading = ReadOnly, Writing = ReadWrite|Create|Truncate
}
 Access modes. More...
enum  { Begin = 0, Current = 1, End = 2 }
 Positioning modes. More...
enum  {
  OtherExec = 0x00001, OtherWrite = 0x00002, OtherRead = 0x00004, OtherReadWrite = OtherRead|OtherWrite,
  OtherFull = OtherReadWrite|OtherExec, GroupExec = 0x00008, GroupWrite = 0x00010, GroupRead = 0x00020,
  GroupReadWrite = GroupRead|GroupWrite, GroupFull = GroupReadWrite|GroupExec, OwnerExec = 0x00040, OwnerWrite = 0x00080,
  OwnerRead = 0x00100, OwnerReadWrite = OwnerRead|OwnerWrite, OwnerFull = OwnerReadWrite|OwnerExec, AllRead = OtherRead|GroupRead|OwnerRead,
  AllWrite = OtherWrite|GroupWrite|OwnerWrite, AllExec = OtherExec|GroupExec|OwnerExec, AllReadWrite = AllRead|AllWrite, AllFull = AllReadWrite|AllExec,
  Hidden = 0x00200, Directory = 0x00400, File = 0x00800, SymLink = 0x01000,
  SetUser = 0x02000, SetGroup = 0x04000, Sticky = 0x08000, Character = 0x10000,
  Block = 0x20000, Socket = 0x40000, Fifo = 0x80000
}
 File modes. More...
enum  { Error = -1, Again = -2, Broken = -3 }
 Error return codes for readBlock() and writeBlock() More...

Public Member Functions

FXbool isReadable () const
 Is readable.
FXbool isWritable () const
 Is writable.
FXuint mode () const
 Return access mode.
virtual FXbool setMode (FXuint m)
 Change access mode of open device.
virtual FXbool isOpen () const
 Return true if open.
virtual FXbool isSerial () const
 Return true if serial access only.
virtual FXlong position () const
 Get current file position.
virtual FXlong position (FXlong offset, FXuint from=FXIO::Begin)
 Change file position, returning new position from start.
virtual FXival readBlock (void *ptr, FXival count)
 Read block of bytes, returning number of bytes read.
virtual FXival writeBlock (const void *ptr, FXival count)
 Write block of bytes, returning number of bytes written.
FXbool readChar (FXchar &ch)
 Read character.
FXbool writeChar (FXchar ch)
 Write character.
virtual FXlong truncate (FXlong sz)
 Truncate file.
virtual FXbool flush ()
 Flush to disk.
virtual FXint eof ()
 Test if we're at the end; -1 if error.
virtual FXlong size ()
 Return size.
virtual FXbool close ()
 Close handle.
virtual ~FXIO ()
 Destroy and close.

Protected Member Functions

 FXIO (FXuint m)

Protected Attributes

FXlong pointer
FXuint access

Detailed Description

FXIO is a base class for a generic i/o device.

The FXIO implementation provides an endless source or sink of data. You can use FXIO to tally the number of bytes required to save something to storage before actually doing so.


Member Enumeration Documentation

anonymous enum

Access modes.

Enumerator:
NoAccess

Basic access options.

ReadOnly

No access.

WriteOnly

Open for reading.

ReadWrite

Open for writing.

Append

Open for both read and write.

Truncate

Open for append.

Create

Truncate to zero when writing.

Exclusive

Create if it doesn't exist.

NonBlocking

Fail if trying to create a file which already exists.

Executable

Non-blocking i/o.

OwnHandle

Executable (memory map)

NoAccessTime

File handle is ours.

Inheritable

Don't change access time of file.

Reading

Child process can inherit handle.

Convenience access options

Writing

Normal options for reading.

anonymous enum

Positioning modes.

Enumerator:
Current

Position from the begin (default)

End

Position relative to current position.

anonymous enum

File modes.

Enumerator:
OtherExec

Permissions.

OtherWrite

Others have execute permission.

OtherRead

Others have write permisson.

OtherReadWrite

Others have read permission.

OtherFull

Others have read and write permission.

GroupExec

Others have full access.

GroupWrite

Group has execute permission.

GroupRead

Group has write permission.

GroupReadWrite

Group has read permission.

GroupFull

Group has read and write permission.

OwnerExec

Group has full access.

OwnerWrite

Owner has execute permission.

OwnerRead

Owner has write permission.

OwnerReadWrite

Owner has read permission.

OwnerFull

Owner has read and write permission.

AllRead

Owner has full access.

AllWrite

Read permission for all.

AllExec

Write permisson for all.

AllReadWrite

Execute permission for all.

AllFull

Read and write permission for all.

Hidden

Full access for all.

Other flags

Directory

Hidden file.

File

Is directory.

SymLink

Is regular file.

SetUser

Is symbolic link.

Special mode bits

SetGroup

Set user id.

Sticky

Set group id.

Character

Sticky bit.

Device special files

Block

Character device.

Socket

Block device.

Fifo

Socket device.

anonymous enum

Error return codes for readBlock() and writeBlock()

Enumerator:
Again

Error in operation.

Broken

Try again (for non-blocking handles)


The documentation for this class was generated from the following file:
