FX::FXDockBar Class Reference

A dock bar widget can be docked inside a dock site widget, or floated around freely. More...

#include <FXDockBar.h>

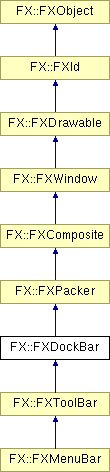

Inheritance diagram for FX::FXDockBar:

FX::FXPacker FX::FXComposite FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject FX::FXToolBar FX::FXMenuBar List of all members.

Public Types

enum  {
  ID_DOCK_FLOAT = FXPacker::ID_LAST,
  ID_DOCK_TOP,
  ID_DOCK_BOTTOM,
  ID_DOCK_LEFT,
  ID_DOCK_RIGHT,
  ID_DOCK_FLIP,
  ID_TOOLBARGRIP,
  ID_TIMER,
  ID_LAST
}
enum  {
  ALLOW_NOWHERE = 0,
  ALLOW_TOP = 1,
  ALLOW_BOTTOM = 2,
  ALLOW_LEFT = 4,
  ALLOW_RIGHT = 8,
  ALLOW_HORIZONTAL = ALLOW_TOP|ALLOW_BOTTOM,
  ALLOW_VERTICAL = ALLOW_LEFT|ALLOW_RIGHT,
  ALLOW_EVERYWHERE = ALLOW_HORIZONTAL|ALLOW_VERTICAL
}

Public Member Functions

 FXDockBar (FXComposite *p, FXComposite *q, FXuint opts=LAYOUT_TOP|LAYOUT_LEFT|LAYOUT_FILL_X, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=3, FXint pr=3, FXint pt=2, FXint pb=2, FXint hs=DEFAULT_SPACING, FXint vs=DEFAULT_SPACING)
 FXDockBar (FXComposite *p, FXuint opts, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=2, FXint pr=3, FXint pt=3, FXint pb=2, FXint hs=DEFAULT_SPACING, FXint vs=DEFAULT_SPACING)
FXbool isDocked () const
void setDryDock (FXComposite *dry)
void setWetDock (FXComposite *wet)
FXComposite * getDryDock () const
FXComposite * getWetDock () const
FXDockSite * findDockAtSide (FXuint side=LAYOUT_SIDE_TOP)
FXDockSite * findDockNear (FXint rootx, FXint rooty)
virtual void dock (FXDockSite *docksite, FXWindow *before=NULL)
virtual void dock (FXDockSite *docksite, FXint localx, FXint localy)
virtual void undock (FXint rootx, FXint rooty)
void allowedSides (FXuchar allow=ALLOW_EVERYWHERE)
FXuchar allowedSides () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)
virtual ~FXDockBar ()

Detailed Description

A dock bar widget can be docked inside a dock site widget, or floated around freely.

Users can move, undock, and dock the dock bar widget by means of a handle such as a tool bar grip.

Member Enumeration Documentation

anonymous enum


Enumeration values:
ID_DOCK_FLOAT  Undock the dock bar.
ID_DOCK_TOP  Dock on the top.
ID_DOCK_BOTTOM  Dock on the bottom.
ID_DOCK_LEFT  Dock on the left.
ID_DOCK_RIGHT  Dock on the right.
ID_DOCK_FLIP  Flip orientation.
ID_TOOLBARGRIP  Tool bar grip.

anonymous enum


Enumeration values:
ALLOW_NOWHERE  Don't allow docking anywhere.
ALLOW_TOP  Docking at the top only.
ALLOW_BOTTOM  Docking at the bottom only.
ALLOW_LEFT  Docking at the left only.
ALLOW_RIGHT  Docking at the right only.
ALLOW_HORIZONTAL  Docking at the top and bottom.
ALLOW_VERTICAL  Docking at the left and right.
ALLOW_EVERYWHERE  Docking can be everywhere.

Constructor & Destructor Documentation

FX::FXDockBar::FXDockBar (  FXComposite *  p,
FXComposite *  q,
FXuint  opts = LAYOUT_TOP|LAYOUT_LEFT|LAYOUT_FILL_X,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = 3,
FXint  pr = 3,
FXint  pt = 2,
FXint  pb = 2,
FXint  hs = DEFAULT_SPACING,
FXint  vs = DEFAULT_SPACING
)


Construct a floatable dock bar, with a default parent p and an alternate parent q.

To allow docking and dragging the default parent p must be of type FXDockSite, and the alternate parent q must be of type FXToolBarShell. Normally, the dock bar is docked under a window p of type FXDockSite. When floated, the toolbar can be docked under window q, which is usually an kind of FXToolBarShell window.

FX::FXDockBar::FXDockBar (  FXComposite *  p,
FXuint  opts,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = 2,
FXint  pr = 3,
FXint  pt = 3,
FXint  pb = 2,
FXint  hs = DEFAULT_SPACING,
FXint  vs = DEFAULT_SPACING
)


Construct a non-floatable dock bar.

The dock bar can not be undocked.

virtual FX::FXDockBar::~FXDockBar (   )  [virtual]


Destroy.

Member Function Documentation

FXbool FX::FXDockBar::isDocked (   )  const


Return true if docked.

void FX::FXDockBar::setDryDock (  FXComposite *  dry  )


Set parent when docked.

If it was docked, reparent under the new docking window.

void FX::FXDockBar::setWetDock (  FXComposite *  wet  )


Set parent when floating.

If it was undocked, then reparent under the new floating window.

FXComposite* FX::FXDockBar::getDryDock (   )  const [inline]


Return parent when docked.

FXComposite* FX::FXDockBar::getWetDock (   )  const [inline]


Return parent when floating.

FXDockSite* FX::FXDockBar::findDockAtSide (  FXuint  side = LAYOUT_SIDE_TOP  )


Search for dock against given side of main window.

FXDockSite* FX::FXDockBar::findDockNear (  FXint  rootx,
FXint  rooty
)


Search for dock close to coordinates rootx, rooty.

virtual void FX::FXDockBar::dock (  FXDockSite *  docksite,
FXWindow *  before = NULL
)  [virtual]


Dock the bar against the given side, after some other widget.

However, if after is -1, it will be docked as the innermost bar just before the work-area, while if after is 0, if will be docked as the outermost bar.

Reimplemented in FX::FXToolBar.

virtual void FX::FXDockBar::dock (  FXDockSite *  docksite,
FXint  localx,
FXint  localy
)  [virtual]


Dock the bar against the given side, near the given position relative to the toolbar dock's origin.

Reimplemented in FX::FXToolBar.

virtual void FX::FXDockBar::undock (  FXint  rootx,
FXint  rooty
)  [virtual]


Undock or float the bar.

The initial position of the wet dock is a few pixels below and to the right of the original docked position.

void FX::FXDockBar::allowedSides (  FXuchar  allow = ALLOW_EVERYWHERE  )  [inline]


Change set of sides where docking is allowed.

The default is to allow docking on all sides.

FXuchar FX::FXDockBar::allowedSides (   )  const [inline]


Return set of sides where docking is allowed.

virtual void FX::FXDockBar::save (  FXStream &  store  )  const [virtual]


Save toolbar to a stream.

Reimplemented from FX::FXPacker.

virtual void FX::FXDockBar::load (  FXStream &  store  )  [virtual]


Load toolbar from a stream.

Reimplemented from FX::FXPacker.
