FX::FXGLViewer Class Reference

OpenGL viewer widget. More...

#include <FXGLViewer.h>

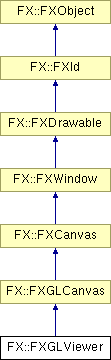

Inheritance diagram for FX::FXGLViewer:


Public Types
enum	{ PARALLEL, PERSPECTIVE }
Public Member Functions
virtual long	onDefault (FXObject , FXSelector, void )
	FXGLViewer (FXComposite p, FXGLVisual vis, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	FXGLViewer (FXComposite p, FXGLVisual vis, FXGLViewer sharegroup, FXObject tgt=NULL, FXSelector sel=0, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
virtual void	create ()
virtual void	detach ()
virtual void	layout ()
FXdouble	worldPix () const
FXdouble	modelPix () const
FXGLObject **	lasso (FXint x1, FXint y1, FXint x2, FXint y2)
virtual FXGLObject **	select (FXint x, FXint y, FXint w, FXint h)
virtual FXGLObject *	pick (FXint x, FXint y)
virtual FXbool	setBounds (const FXRangef &box)
FXbool	fitToBounds (const FXRangef &box)
void	getViewport (FXViewport &v) const
void	eyeToScreen (FXint &sx, FXint &sy, FXVec3f e)
FXVec3f	screenToEye (FXint sx, FXint sy, FXfloat eyez=0.0)
FXVec3f	screenToTarget (FXint sx, FXint sy)
FXVec3f	worldToEye (FXVec3f w)
FXfloat	worldToEyeZ (FXVec3f w)
FXVec3f	eyeToWorld (FXVec3f e)
FXVec3f	worldVector (FXint fx, FXint fy, FXint tx, FXint ty)
void	setMaterial (const FXMaterial &mtl)
void	getMaterial (FXMaterial &mtl) const
void	setFieldOfView (FXdouble fv)
FXdouble	getFieldOfView () const
void	setZoom (FXdouble zm)
FXdouble	getZoom () const
void	setDistance (FXdouble ed)
FXdouble	getDistance () const
void	setScale (FXVec3f s)
const FXVec3f &	getScale () const
void	setOrientation (FXQuatf rot)
const FXQuatf &	getOrientation () const
void	setCenter (FXVec3f cntr)
const FXVec3f &	getCenter () const
void	translate (FXVec3f vec)
FXbool	getBoreVector (FXint sx, FXint sy, FXVec3f &point, FXVec3f &dir)
FXVec3f	getEyeVector () const
FXVec3f	getEyePosition () const
void	setHelpText (const FXString &text)
const FXString &	getHelpText () const
void	setTipText (const FXString &text)
const FXString &	getTipText () const
const FXMat4f &	getTransform () const
const FXMat4f &	getInvTransform () const
void	setScene (FXGLObject *sc)
FXGLObject *	getScene () const
void	setSelection (FXGLObject *sel)
FXGLObject *	getSelection () const
void	setProjection (FXuint proj)
FXuint	getProjection () const
void	setBackgroundColor (const FXVec4f &clr, FXbool bottom=MAYBE)
const FXVec4f &	getBackgroundColor (FXbool bottom=FALSE) const
void	setAmbientColor (const FXVec4f &clr)
const FXVec4f &	getAmbientColor () const
FXbool	readPixels (FXColor *&buffer, FXint x, FXint y, FXint w, FXint h)
FXbool	readFeedback (FXfloat *&buffer, FXint &used, FXint &size, FXint x, FXint y, FXint w, FXint h)
void	setZSortFunc (FXZSortFunc func)
FXZSortFunc	getZSortFunc () const
void	setMaxHits (FXint maxh)
FXint	getMaxHits () const
FXbool	doesTurbo () const
FXbool	getTurboMode () const
void	setTurboMode (FXbool turbo=TRUE)
void	getLight (FXLight &lite) const
void	setLight (const FXLight &lite)
virtual void	save (FXStream &store) const
virtual void	load (FXStream &store)
virtual	~FXGLViewer ()
Static Public Attributes
FXDragType	objectType
const FXchar	objectTypeName []

Detailed Description

OpenGL viewer widget.

Member Enumeration Documentation

anonymous enum

Enumeration values:

PARALLEL Parallel projection.

PERSPECTIVE Perspective projection.

Constructor & Destructor Documentation

FX::FXGLViewer::FXGLViewer ( FXComposite * p,

FXGLVisual * vis,

FXObject * tgt = NULL,

FXSelector sel = 0,

FXuint opts = 0,

FXint x = 0,

FXint y = 0,

FXint w = 0,

FXint h = 0

)

Construct GL viewer widget.

FX::FXGLViewer::FXGLViewer ( FXComposite * p,

FXGLVisual * vis,

FXGLViewer * sharegroup,

FXObject * tgt = NULL,

FXSelector sel = 0,

FXuint opts = 0,

FXint x = 0,

FXint y = 0,

FXint w = 0,

FXint h = 0

)

Construct GL viewer widget sharing display list with another GL viewer.

virtual FX::FXGLViewer::~FXGLViewer ( ) [virtual]

Destructor.

Member Function Documentation

virtual long FX::FXGLViewer::onDefault ( FXObject * ,

FXSelector ,

void *

) [virtual]

Called for unhandled messages.

Reimplemented from FX::FXObject.

virtual void FX::FXGLViewer::create ( ) [virtual]

Create all of the server-side resources for this window.

Reimplemented from FX::FXGLCanvas.

virtual void FX::FXGLViewer::detach ( ) [virtual]

Detach server-side resources.

Reimplemented from FX::FXGLCanvas.

virtual void FX::FXGLViewer::layout ( ) [virtual]

Perform layout.

Reimplemented from FX::FXWindow.

FXdouble FX::FXGLViewer::worldPix ( ) const [inline]

Return size of pixel in world coordinates.

FXdouble FX::FXGLViewer::modelPix ( ) const [inline]

Return size of pixel in model coordinates.

FXGLObject** FX::FXGLViewer::lasso ( FXint x1,

FXint y1,

FXint x2,

FXint y2

)

Return a NULL-terminated list of all objects in the given rectangle, or NULL.

virtual FXGLObject** FX::FXGLViewer::select ( FXint x,

FXint y,

FXint w,

FXint h

) [virtual]

Return a NULL-terminated list of all objects in the given rectangle, or NULL.

virtual FXGLObject* FX::FXGLViewer::pick ( FXint x,

FXint y

) [virtual]

Perform a pick operation, returning the object at the given x,y position, or NULL.

virtual FXbool FX::FXGLViewer::setBounds ( const FXRangef & box ) [virtual]

Change the model bounding box; this adjusts the viewer.

FXbool FX::FXGLViewer::fitToBounds ( const FXRangef & box )

Fit viewer to the given bounding box.

void FX::FXGLViewer::getViewport ( FXViewport & v ) const

Return the viewer's viewport.

void FX::FXGLViewer::eyeToScreen ( FXint & sx,

FXint & sy,

FXVec3f e

)

Translate eye-coordinate to screen coordinate.

FXVec3f FX::FXGLViewer::screenToEye ( FXint sx,

FXint sy,

FXfloat eyez = 0.0

)

Translate screen coordinate to eye coordinate at the given depth.

FXVec3f FX::FXGLViewer::screenToTarget ( FXint sx,

FXint sy

)

Translate screen coordinate to eye coordinate at the target point depth.

FXVec3f FX::FXGLViewer::worldToEye ( FXVec3f w )

Translate world coordinate to eye coordinate.

FXfloat FX::FXGLViewer::worldToEyeZ ( FXVec3f w )

Translate world coordinate to eye coordinate depth.

FXVec3f FX::FXGLViewer::eyeToWorld ( FXVec3f e )

Translate eye coordinate to eye coordinate.

FXVec3f FX::FXGLViewer::worldVector ( FXint fx,

FXint fy,

FXint tx,

FXint ty

)

Calculate world coordinate vector from screen movement.

void FX::FXGLViewer::setMaterial ( const FXMaterial & mtl )

Change default object material setting.

void FX::FXGLViewer::getMaterial ( FXMaterial & mtl ) const

Return default object material setting.

void FX::FXGLViewer::setFieldOfView ( FXdouble fv )

Change camera field of view angle (in degrees).

FXdouble FX::FXGLViewer::getFieldOfView ( ) const [inline]

Return camera field of view angle.

void FX::FXGLViewer::setZoom ( FXdouble zm )

Change camera zoom factor.

FXdouble FX::FXGLViewer::getZoom ( ) const [inline]

Return camera zoom factor.

void FX::FXGLViewer::setDistance ( FXdouble ed )

Change target point distance.

FXdouble FX::FXGLViewer::getDistance ( ) const [inline]

Return target point distance.

void FX::FXGLViewer::setScale ( FXVec3f s )

Change unequal model scaling factors.

const FXVec3f& FX::FXGLViewer::getScale ( ) const [inline]

Return current scaling factors.

void FX::FXGLViewer::setOrientation ( FXQuatf rot )

Change camera orientation from quaternion.

const FXQuatf& FX::FXGLViewer::getOrientation ( ) const [inline]

Return current camera orientation quaternion.

void FX::FXGLViewer::setCenter ( FXVec3f cntr )

Change object center (tranlation).

const FXVec3f& FX::FXGLViewer::getCenter ( ) const [inline]

Return object center.

void FX::FXGLViewer::translate ( FXVec3f vec )

Translate object center.

FXbool FX::FXGLViewer::getBoreVector ( FXint sx,

FXint sy,

FXVec3f & point,

FXVec3f & dir

)

Return boresight vector.

FXVec3f FX::FXGLViewer::getEyeVector ( ) const

Return eyesight vector.

FXVec3f FX::FXGLViewer::getEyePosition ( ) const

Return eye position.

void FX::FXGLViewer::setHelpText ( const FXString & text )

Change help text.

const FXString& FX::FXGLViewer::getHelpText ( ) const [inline]

Return help text.

void FX::FXGLViewer::setTipText ( const FXString & text )

Change tip text.

const FXString& FX::FXGLViewer::getTipText ( ) const [inline]

Return tip text.

const FXMat4f& FX::FXGLViewer::getTransform ( ) const [inline]

Return the current transformation matrix.

const FXMat4f& FX::FXGLViewer::getInvTransform ( ) const [inline]

Return the inverse of the current transformation matrix.

void FX::FXGLViewer::setScene ( FXGLObject * sc )

Change the scene, i.e. the object being displayed.

FXGLObject* FX::FXGLViewer::getScene ( ) const [inline]

Return the current scene object.

void FX::FXGLViewer::setSelection ( FXGLObject * sel )

Change selection.

FXGLObject* FX::FXGLViewer::getSelection ( ) const [inline]

Return selection.

void FX::FXGLViewer::setProjection ( FXuint proj )

Change the projection mode, PERSPECTIVE or PARALLEL.

FXuint FX::FXGLViewer::getProjection ( ) const [inline]

Return the projection mode.

void FX::FXGLViewer::setBackgroundColor ( const FXVec4f & clr,

FXbool bottom = MAYBE

)

Change top or bottom or both background colors.

const FXVec4f& FX::FXGLViewer::getBackgroundColor ( FXbool bottom = FALSE ) const [inline]

Return top or bottom window background color.

void FX::FXGLViewer::setAmbientColor ( const FXVec4f & clr )

Change global ambient light color.

const FXVec4f& FX::FXGLViewer::getAmbientColor ( ) const [inline]

Return global ambient light color.

FXbool FX::FXGLViewer::readPixels ( FXColor *& buffer,

FXint x,

FXint y,

FXint w,

FXint h

)

Read the pixels off the screen as array of FXColor; this array can be directly passed to fxsaveBMP and other image output routines.

FXbool FX::FXGLViewer::readFeedback ( FXfloat *& buffer,

FXint & used,

FXint & size,

FXint x,

FXint y,

FXint w,

FXint h

)

Read the feedback buffer containing the current scene, returning used and allocated size.

void FX::FXGLViewer::setZSortFunc ( FXZSortFunc func ) [inline]

Change hidden-surface feedback buffer sorting algorithm.
This can be used for move/draw printed output depth sorting.

FXZSortFunc FX::FXGLViewer::getZSortFunc ( ) const [inline]

Return hidden surface sorting function.

void FX::FXGLViewer::setMaxHits ( FXint maxh ) [inline]

Change the maximum hits, i.e.
the maximum size of the pick buffer. When set to less than or equal to zero, picking is essentially turned off.

FXint FX::FXGLViewer::getMaxHits ( ) const [inline]

Return maximum pickbuffer size.

FXbool FX::FXGLViewer::doesTurbo ( ) const [inline]

When drawing a GL object, if doesTurbo() is true, the object may choose to perform a reduced complexity drawing as the user is interactively manipulating; another update will be done later when the full complexity drawing can be performed again.

FXbool FX::FXGLViewer::getTurboMode ( ) const [inline]

Return turbo mode setting.

void FX::FXGLViewer::setTurboMode ( FXbool turbo = TRUE )

Set turbo mode.

void FX::FXGLViewer::getLight ( FXLight & lite ) const

Return light source settings.

void FX::FXGLViewer::setLight ( const FXLight & lite )

Change light source settings.

virtual void FX::FXGLViewer::save ( FXStream & store ) const [virtual]

Save viewer to a stream.

Reimplemented from FX::FXGLCanvas.

virtual void FX::FXGLViewer::load ( FXStream & store ) [virtual]

Load viewer from a stream.

Reimplemented from FX::FXGLCanvas.

FX::FXGLViewer Class Reference

Public Types

Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
