FX::FXColorRing Class Reference

A Color Ring widget provides an intuitive way to specify a color. More...

#include <FXColorRing.h>

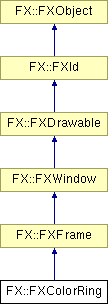

Inheritance diagram for FX::FXColorRing:

FX::FXFrame FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject List of all members.

Public Member Functions

 FXColorRing (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=FRAME_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
virtual void create ()
virtual void detach ()
virtual void layout ()
virtual FXint getDefaultWidth ()
virtual FXint getDefaultHeight ()
void setHue (FXfloat h)
FXfloat getHue () const
void setSat (FXfloat s)
FXfloat getSat () const
void setVal (FXfloat v)
FXfloat getVal () const
void setHueSatVal (FXfloat h, FXfloat s, FXfloat v)
void setRingWidth (FXint rw)
FXint getRingWidth () const
void setHelpText (const FXString &text)
const FXStringgetHelpText () const
void setTipText (const FXString &text)
const FXStringgetTipText () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)
virtual ~FXColorRing ()

Detailed Description

A Color Ring widget provides an intuitive way to specify a color.

The outer ring of the widget is rotated to control the hue of the color being specified, while the inner triangle varies the color saturation and the brightness of the color. The color saturation axis of the triangle goes from a fully saturated "pure" color to "pastel" color; the brightness goes from black to a bright color.


Constructor & Destructor Documentation

FX::FXColorRing::FXColorRing FXComposite p,
FXObject tgt = NULL,
FXSelector  sel = 0,
FXuint  opts = FRAME_NORMAL,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = DEFAULT_PAD,
FXint  pr = DEFAULT_PAD,
FXint  pt = DEFAULT_PAD,
FXint  pb = DEFAULT_PAD


Construct color ring with initial color clr.

virtual FX::FXColorRing::~FXColorRing  )  [virtual]


Destructor.


Member Function Documentation

virtual void FX::FXColorRing::create  )  [virtual]


Create server-side resources.

Reimplemented from FX::FXWindow.

virtual void FX::FXColorRing::detach  )  [virtual]


Detach server-side resources.

Reimplemented from FX::FXWindow.

virtual void FX::FXColorRing::layout  )  [virtual]


Perform layout.

Reimplemented from FX::FXWindow.

virtual FXint FX::FXColorRing::getDefaultWidth  )  [virtual]


Return default width.

Reimplemented from FX::FXFrame.

virtual FXint FX::FXColorRing::getDefaultHeight  )  [virtual]


Return default height.

Reimplemented from FX::FXFrame.

void FX::FXColorRing::setHue FXfloat  h  )


Change hue.

FXfloat FX::FXColorRing::getHue  )  const [inline]


Return hue.

void FX::FXColorRing::setSat FXfloat  s  )


Change saturation.

FXfloat FX::FXColorRing::getSat  )  const [inline]


Return saturation.

void FX::FXColorRing::setVal FXfloat  v  )


Change value.

FXfloat FX::FXColorRing::getVal  )  const [inline]


Return value.

void FX::FXColorRing::setHueSatVal FXfloat  h,
FXfloat  s,
FXfloat  v


Set hue, saturation, value.

void FX::FXColorRing::setRingWidth FXint  rw  )


Change width of hue ring.

FXint FX::FXColorRing::getRingWidth  )  const [inline]


Return width of hue ring.

void FX::FXColorRing::setHelpText const FXString text  )  [inline]


Set status line help text for this color well.

const FXString& FX::FXColorRing::getHelpText  )  const [inline]


Get status line help text for this color well.

void FX::FXColorRing::setTipText const FXString text  )  [inline]


Set tool tip message for this color well.

const FXString& FX::FXColorRing::getTipText  )  const [inline]


Get tool tip message for this color well.

virtual void FX::FXColorRing::save FXStream store  )  const [virtual]


Save color well to a stream.

Reimplemented from FX::FXFrame.

virtual void FX::FXColorRing::load FXStream store  )  [virtual]


Load color well from a stream.

Reimplemented from FX::FXFrame.
