FX::FXListBox

FX::FXListBox Class Reference

The List Box is a control to select one of a list of options. More...

#include <FXListBox.h>

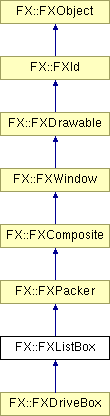

Inheritance diagram for FX::FXListBox:

FX::FXPacker FX::FXComposite FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject FX::FXDriveBox List of all members.

Public Member Functions

 FXListBox (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=FRAME_SUNKEN|FRAME_THICK|LISTBOX_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
virtual void create ()
virtual void detach ()
virtual void destroy ()
virtual void layout ()
virtual void enable ()
virtual void disable ()
virtual FXint getDefaultWidth ()
virtual FXint getDefaultHeight ()
FXint getNumItems () const
FXint getNumVisible () const
void setNumVisible (FXint nvis)
FXbool isItemCurrent (FXint index) const
virtual void setCurrentItem (FXint index, FXbool notify=FALSE)
FXint getCurrentItem () const
FXString getItem (FXint index) const
FXint setItem (FXint index, const FXString &text, FXIcon *icon=NULL, void *ptr=NULL)
FXint fillItems (const FXchar **strings, FXIcon *icon=NULL, void *ptr=NULL)
FXint fillItems (const FXString &strings, FXIcon *icon=NULL, void *ptr=NULL)
FXint insertItem (FXint index, const FXString &text, FXIcon *icon=NULL, void *ptr=NULL)
FXint appendItem (const FXString &text, FXIcon *icon=NULL, void *ptr=NULL)
FXint prependItem (const FXString &text, FXIcon *icon=NULL, void *ptr=NULL)
FXint moveItem (FXint newindex, FXint oldindex)
FXListItem * extractItem (FXint index)
void removeItem (FXint index)
void clearItems ()
FXint findItem (const FXString &text, FXint start=-1, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
FXint findItemByData (const void *ptr, FXint start=-1, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
void setItemText (FXint index, const FXString &text)
FXString getItemText (FXint index) const
void setItemIcon (FXint index, FXIcon *icon, FXbool owned=FALSE)
FXIcon * getItemIcon (FXint index) const
void setItemData (FXint index, void *ptr) const
void * getItemData (FXint index) const
FXbool isPaneShown () const
void sortItems ()
void setFont (FXFont *fnt)
FXFont * getFont () const
virtual void setBackColor (FXColor clr)
FXColor getBackColor () const
void setTextColor (FXColor clr)
FXColor getTextColor () const
void setSelBackColor (FXColor clr)
FXColor getSelBackColor () const
void setSelTextColor (FXColor clr)
FXColor getSelTextColor () const
FXListSortFunc getSortFunc () const
void setSortFunc (FXListSortFunc func)
void setHelpText (const FXString &txt)
const FXString & getHelpText () const
void setTipText (const FXString &txt)
const FXString & getTipText () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)
virtual ~FXListBox ()

Detailed Description

The List Box is a control to select one of a list of options.

It looks similar to a Combo Box except that List Box yields integer numbers only. When an option is selected, List Box will send an SEL_COMMAND with the index of the opton. While manipulating the list, it may send SEL_CHANGED messages to indicate which option the cursor is hovering over. The List Box is able to receive ID_GETINTVALUE and ID_SETINTVALUE which will retrieve the current option or change the selected option.

See also:

Constructor & Destructor Documentation

FX::FXListBox::FXListBox (  FXComposite *  p,
FXObject *  tgt = NULL,
FXSelector  sel = 0,
FXuint  opts = FRAME_SUNKEN|FRAME_THICK|LISTBOX_NORMAL,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = DEFAULT_PAD,
FXint  pr = DEFAULT_PAD,
FXint  pt = DEFAULT_PAD,
FXint  pb = DEFAULT_PAD
)


Constructor.

virtual FX::FXListBox::~FXListBox (   )  [virtual]


Destructor.

Member Function Documentation

virtual void FX::FXListBox::create (   )  [virtual]


Create server-side resources.

Reimplemented from FX::FXComposite.

Reimplemented in FX::FXDriveBox.

virtual void FX::FXListBox::detach (   )  [virtual]


Detach server-side resources.

Reimplemented from FX::FXComposite.

Reimplemented in FX::FXDriveBox.

virtual void FX::FXListBox::destroy (   )  [virtual]


Destroy server-side resources.

Reimplemented from FX::FXComposite.

Reimplemented in FX::FXDriveBox.

virtual void FX::FXListBox::layout (   )  [virtual]


Perform layout.

Reimplemented from FX::FXPacker.

virtual void FX::FXListBox::enable (   )  [virtual]


Enable drive box.

Reimplemented from FX::FXWindow.

virtual void FX::FXListBox::disable (   )  [virtual]


Disable drive box.

Reimplemented from FX::FXWindow.

virtual FXint FX::FXListBox::getDefaultWidth (   )  [virtual]


Return default width.

Reimplemented from FX::FXPacker.

virtual FXint FX::FXListBox::getDefaultHeight (   )  [virtual]


Return default height.

Reimplemented from FX::FXPacker.

FXint FX::FXListBox::getNumItems (   )  const


Return the number of items in the list.

FXint FX::FXListBox::getNumVisible (   )  const


Return the number of visible items.

void FX::FXListBox::setNumVisible (  FXint  nvis  )


Set the number of visible items.

FXbool FX::FXListBox::isItemCurrent (  FXint  index  )  const


Return true if current item.

virtual void FX::FXListBox::setCurrentItem (  FXint  index,
FXbool  notify = FALSE
)  [virtual]


Set the current item (index is zero-based).

FXint FX::FXListBox::getCurrentItem (   )  const


Get the current item's index.

FXString FX::FXListBox::getItem (  FXint  index  )  const


Return the item at the given index.

FXint FX::FXListBox::setItem (  FXint  index,
const FXString &  text,
FXIcon *  icon = NULL,
void *  ptr = NULL
)


Replace the item at index.

FXint FX::FXListBox::fillItems (  const FXchar **  strings,
FXIcon *  icon = NULL,
void *  ptr = NULL
)


Fill list box by appending items from array of strings.

FXint FX::FXListBox::fillItems (  const FXString &  strings,
FXIcon *  icon = NULL,
void *  ptr = NULL
)


Fill list box by appending items from newline separated strings.

FXint FX::FXListBox::insertItem (  FXint  index,
const FXString &  text,
FXIcon *  icon = NULL,
void *  ptr = NULL
)


Insert a new item at index.

FXint FX::FXListBox::appendItem (  const FXString &  text,
FXIcon *  icon = NULL,
void *  ptr = NULL
)


Add an item to the end of the list.

FXint FX::FXListBox::prependItem (  const FXString &  text,
FXIcon *  icon = NULL,
void *  ptr = NULL
)


Prepend an item to the list.

FXint FX::FXListBox::moveItem (  FXint  newindex,
FXint  oldindex
)


Move item from oldindex to newindex.

FXListItem* FX::FXListBox::extractItem (  FXint  index  )


Extract item from list.

void FX::FXListBox::removeItem (  FXint  index  )


Remove this item from the list.

void FX::FXListBox::clearItems (   )


Remove all items from the list.

FXint FX::FXListBox::findItem (  const FXString &  text,
FXint  start = -1,
FXuint  flags = SEARCH_FORWARD|SEARCH_WRAP
)  const


Search items by name, beginning from item start.

If the start item is -1 the search will start at the first item in the list. Flags may be SEARCH_FORWARD or SEARCH_BACKWARD to control the search direction; this can be combined with SEARCH_NOWRAP or SEARCH_WRAP to control whether the search wraps at the start or end of the list. The option SEARCH_IGNORECASE causes a case-insensitive match. Finally, passing SEARCH_PREFIX causes searching for a prefix of the item name. Return -1 if no matching item is found.

FXint FX::FXListBox::findItemByData (  const void *  ptr,
FXint  start = -1,
FXuint  flags = SEARCH_FORWARD|SEARCH_WRAP
)  const


Search items by associated user data, beginning from item start.

If the start item is -1 the search will start at the first item in the list. Flags may be SEARCH_FORWARD or SEARCH_BACKWARD to control the search direction; this can be combined with SEARCH_NOWRAP or SEARCH_WRAP to control whether the search wraps at the start or end of the list.

void FX::FXListBox::setItemText (  FXint  index,
const FXString &  text
)


Set text for specified item.

FXString FX::FXListBox::getItemText (  FXint  index  )  const


Get text for specified item.

void FX::FXListBox::setItemIcon (  FXint  index,
FXIcon *  icon,
FXbool  owned = FALSE
)


Change item icon, deleting old one if it was owned.

FXIcon* FX::FXListBox::getItemIcon (  FXint  index  )  const


Return icon of item at index.

void FX::FXListBox::setItemData (  FXint  index,
void *  ptr
)  const


Set data pointer for specified item.

void* FX::FXListBox::getItemData (  FXint  index  )  const


Get data pointer for specified item.

FXbool FX::FXListBox::isPaneShown (   )  const


Is the pane shown.

void FX::FXListBox::sortItems (   )


Sort items using current sort function.

void FX::FXListBox::setFont (  FXFont *  fnt  )


Set text font.

FXFont* FX::FXListBox::getFont (   )  const


Get text font.

virtual void FX::FXListBox::setBackColor (  FXColor  clr  )  [virtual]


Set window background color.

Reimplemented from FX::FXWindow.

FXColor FX::FXListBox::getBackColor (   )  const


Get background color.

Reimplemented from FX::FXWindow.

void FX::FXListBox::setTextColor (  FXColor  clr  )


Change text color.

FXColor FX::FXListBox::getTextColor (   )  const


Return text color.

void FX::FXListBox::setSelBackColor (  FXColor  clr  )


Change selected background color.

FXColor FX::FXListBox::getSelBackColor (   )  const


Return selected background color.

void FX::FXListBox::setSelTextColor (  FXColor  clr  )


Change selected text color.

FXColor FX::FXListBox::getSelTextColor (   )  const


Return selected text color.

FXListSortFunc FX::FXListBox::getSortFunc (   )  const


Return sort function.

void FX::FXListBox::setSortFunc (  FXListSortFunc  func  )


Change sort function.

void FX::FXListBox::setHelpText (  const FXString &  txt  )


Set the combobox help text.

const FXString& FX::FXListBox::getHelpText (   )  const


Get the combobox help text.

void FX::FXListBox::setTipText (  const FXString &  txt  )


Set the tool tip message for this combobox.

const FXString& FX::FXListBox::getTipText (   )  const


Get the tool tip message for this combobox.

virtual void FX::FXListBox::save (  FXStream &  store  )  const [virtual]


Save combobox to a stream.

Reimplemented from FX::FXPacker.

Reimplemented in FX::FXDriveBox.

virtual void FX::FXListBox::load (  FXStream &  store  )  [virtual]


Load combobox from a stream.

Reimplemented from FX::FXPacker.

Reimplemented in FX::FXDriveBox.
