FX::FXMDIClient Class Reference

The MDI client window manages a number of MDI child windows in a multiple-document interface (MDI) application. More...

#include <FXMDIClient.h>

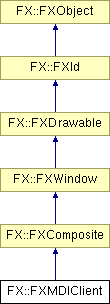

Inheritance diagram for FX::FXMDIClient:

List of all members.

Public Types
enum	{   ID_MDI_ANY = 65400,   ID_MDI_1,   ID_MDI_2,   ID_MDI_3,   ID_MDI_4,   ID_MDI_5,   ID_MDI_6,   ID_MDI_7,   ID_MDI_8,   ID_MDI_9,   ID_MDI_10,   ID_MDI_OVER_1,   ID_MDI_OVER_2,   ID_MDI_OVER_3,   ID_MDI_OVER_4,   ID_MDI_OVER_5,   ID_MDI_OVER_6,   ID_MDI_OVER_7,   ID_MDI_OVER_8,   ID_MDI_OVER_9,   ID_MDI_OVER_10,   ID_LAST }
Public Member Functions
virtual long	onDefault (FXObject *, FXSelector, void *)
	FXMDIClient (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
virtual FXint	getDefaultWidth ()
virtual FXint	getDefaultHeight ()
virtual void	layout ()
long	forallWindows (FXObject *sender, FXSelector sel, void *ptr)
long	forallDocuments (FXObject *sender, FXSelector sel, void *ptr)
long	forallDocWindows (FXObject *document, FXObject *sender, FXSelector sel, void *ptr)
virtual FXbool	setActiveChild (FXMDIChild *child=NULL, FXbool notify=TRUE)
FXMDIChild *	getActiveChild () const
virtual void	cascade (FXbool notify=FALSE)
virtual void	horizontal (FXbool notify=FALSE)
virtual void	vertical (FXbool notify=FALSE)
void	setCascadeX (FXint off)
void	setCascadeY (FXint off)
FXint	getCascadeX () const
FXint	getCascadeY () const
virtual void	save (FXStream &store) const
virtual void	load (FXStream &store)
virtual	~FXMDIClient ()
Friends
class	FXMDIChild

---

Detailed Description

The MDI client window manages a number of MDI child windows in a multiple-document interface (MDI) application.

MDI child windows usually receive messages from the GUI controls by delegation via the MDI client. This is accomplished by making the MDI client window the target for most GUI controls. The MDI client filters out messages intented for itself, and delegates the remaining messages to its currently active MDI child, if any. If you use the auto-gray or auto-hide feature available in some GUI controls, these controls can be automatically grayed out or hidden when there is no active MDI child. When delegating messages via MDI client to MDI child windows of different types, care should be taken that message ID's do not overlap, so that all message ID's only map to the intented handlers no matter which MDI child window type is active. The MDI client sends a SEL_CHANGED message to its target when the active MDI child is switched, with the void* pointer refering to the new MDI child. A MDI Window selection dialog can be brought up through the ID_MDI_OVER_X messages; a menu button connected to the MDI client with the ID_MDI_OVER_X message will be automatically grayed out if there are less than X MDI child windows.

---

Member Enumeration Documentation

anonymous enum

Enumeration values: ID_MDI_ANY  ID_MDI_1  Select MDI child 1. ID_MDI_2  ID_MDI_3  ID_MDI_4  ID_MDI_5  ID_MDI_6  ID_MDI_7  ID_MDI_8  ID_MDI_9  ID_MDI_10  ID_MDI_OVER_1  Sensitize MDI menu when 1 or more children. ID_MDI_OVER_2  ID_MDI_OVER_3  ID_MDI_OVER_4  ID_MDI_OVER_5  ID_MDI_OVER_6  ID_MDI_OVER_7  ID_MDI_OVER_8  ID_MDI_OVER_9  ID_MDI_OVER_10  ID_LAST

---

Constructor & Destructor Documentation

FX::FXMDIClient::FXMDIClient (  FXComposite *  p, FXuint  opts = 0, FXint  x = 0, FXint  y = 0, FXint  w = 0, FXint  h = 0 )

Construct MDI Client window.

virtual FX::FXMDIClient::~FXMDIClient (   )  [virtual]

Destructor.

---

Member Function Documentation

virtual long FX::FXMDIClient::onDefault (  FXObject *  , FXSelector  , void *  )  [virtual]

Called for unhandled messages. Reimplemented from FX::FXObject.

virtual FXint FX::FXMDIClient::getDefaultWidth (   )  [virtual]

Return default width. Reimplemented from FX::FXComposite.

virtual FXint FX::FXMDIClient::getDefaultHeight (   )  [virtual]

Return default height. Reimplemented from FX::FXComposite.

virtual void FX::FXMDIClient::layout (   )  [virtual]

Perform layout. Reimplemented from FX::FXComposite.

long FX::FXMDIClient::forallWindows (  FXObject *  sender, FXSelector  sel, void *  ptr )

Pass message to all MDI windows, stopping when one of the MDI windows fails to handle the message.

long FX::FXMDIClient::forallDocuments (  FXObject *  sender, FXSelector  sel, void *  ptr )

Pass message once to all MDI windows with the same document, stopping when one of the MDI windows fails to handle the message.

long FX::FXMDIClient::forallDocWindows (  FXObject *  document, FXObject *  sender, FXSelector  sel, void *  ptr )

Pass message to all MDI Child windows whose target is document, stopping when one of the MDI windows fails to handle the message.

virtual FXbool FX::FXMDIClient::setActiveChild (  FXMDIChild *  child = NULL, FXbool  notify = TRUE )  [virtual]

Set active MDI Child.

FXMDIChild* FX::FXMDIClient::getActiveChild (   )  const [inline]

Get current active child; may be NULL!

virtual void FX::FXMDIClient::cascade (  FXbool  notify = FALSE  )  [virtual]

Cascade windows.

virtual void FX::FXMDIClient::horizontal (  FXbool  notify = FALSE  )  [virtual]

Layout horizontally.

virtual void FX::FXMDIClient::vertical (  FXbool  notify = FALSE  )  [virtual]

Layout vertically.

void FX::FXMDIClient::setCascadeX (  FXint  off  )  [inline]

Change cascade offset X.

void FX::FXMDIClient::setCascadeY (  FXint  off  )  [inline]

Change cascade offset Y.

FXint FX::FXMDIClient::getCascadeX (   )  const [inline]

Get cascade offset X.

FXint FX::FXMDIClient::getCascadeY (   )  const [inline]

Get cascade offset Y.

virtual void FX::FXMDIClient::save (  FXStream &  store  )  const [virtual]

Save object to a stream. Reimplemented from FX::FXWindow.

virtual void FX::FXMDIClient::load (  FXStream &  store  )  [virtual]

Load object from a stream. Reimplemented from FX::FXWindow.

---

Friends And Related Function Documentation

friend class FXMDIChild [friend]
