FX::FXRuler

FX::FXRuler Class Reference

The ruler widget is placed alongside a document to measure position and size of entities within the document, such as margins, paragraph indents, and tickmarks. More...

#include <FXRuler.h>

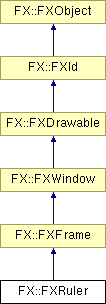

Inheritance diagram for FX::FXRuler:

FX::FXFrame FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject List of all members.

Public Types

enum  {
  ID_ARROW = FXFrame::ID_LAST,
  ID_LAST
}

Public Member Functions

 FXRuler (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=RULER_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
virtual void layout ()
virtual void create ()
virtual void detach ()
virtual FXint getDefaultWidth ()
virtual FXint getDefaultHeight ()
void setPosition (FXint pos, FXbool notify=FALSE)
FXint getPosition () const
void setContentSize (FXint size, FXbool notify=FALSE)
FXint getContentSize () const
FXint getDocumentLower () const
FXint getDocumentUpper () const
void setDocumentSize (FXint size, FXbool notify=FALSE)
FXint getDocumentSize () const
void setEdgeSpacing (FXint space, FXbool notify=FALSE)
FXint getEdgeSpacing () const
void setMarginLower (FXint mgn, FXbool notify=FALSE)
FXint getMarginLower () const
void setMarginUpper (FXint mgn, FXbool notify=FALSE)
FXint getMarginUpper () const
void setIndentFirst (FXint ind, FXbool notify=FALSE)
FXint getIndentFirst () const
void setIndentLower (FXint ind, FXbool notify=FALSE)
FXint getIndentLower () const
void setIndentUpper (FXint ind, FXbool notify=FALSE)
FXint getIndentUpper () const
void setNumberTicks (FXint ticks, FXbool notify=FALSE)
FXint getNumberTicks () const
void setMajorTicks (FXint ticks, FXbool notify=FALSE)
FXint getMajorTicks () const
void setMediumTicks (FXint ticks, FXbool notify=FALSE)
FXint getMediumTicks () const
void setTinyTicks (FXint ticks, FXbool notify=FALSE)
FXint getTinyTicks () const
void setPixelPerTick (FXdouble space, FXbool notify=FALSE)
FXdouble getPixelPerTick () const
void setFont (FXFont *fnt, FXbool notify=FALSE)
FXFont * getFont () const
void setValue (FXint value)
FXint getValue () const
void setRulerStyle (FXuint style)
FXuint getRulerStyle () const
void setRulerAlignment (FXuint alignment, FXbool notify=FALSE)
FXuint getRulerAlignment () const
FXColor getTextColor () const
void setTextColor (FXColor clr)
void setHelpText (const FXString &text)
const FXString & getHelpText () const
void setTipText (const FXString &text)
const FXString & getTipText () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)
virtual ~FXRuler ()

Detailed Description

The ruler widget is placed alongside a document to measure position and size of entities within the document, such as margins, paragraph indents, and tickmarks.

The ruler widget sends a SEL_CHANGED when the indentation or margins are interactively changed by the user. If the document size exceeds the available space, it is possible to scroll the document using setPosition(). When the document size is less than the available space, the alignment options can be used to center, left-adjust, or right-adjust the document. Finally, a special option exists to stretch the document to the available space, that is to say, the document will always be fitten with given left and right edges substracted from the available space.

See also:

Member Enumeration Documentation

anonymous enum


Enumeration values:
ID_ARROW
ID_LAST

Constructor & Destructor Documentation

FX::FXRuler::FXRuler (  FXComposite *  p,
FXObject *  tgt = NULL,
FXSelector  sel = 0,
FXuint  opts = RULER_NORMAL,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = DEFAULT_PAD,
FXint  pr = DEFAULT_PAD,
FXint  pt = DEFAULT_PAD,
FXint  pb = DEFAULT_PAD
)


Construct label with given text and icon.

virtual FX::FXRuler::~FXRuler (   )  [virtual]


Destructor.

Member Function Documentation

virtual void FX::FXRuler::layout (   )  [virtual]


Perform layout.

Reimplemented from FX::FXWindow.

virtual void FX::FXRuler::create (   )  [virtual]


Create server-side resources.

Reimplemented from FX::FXWindow.

virtual void FX::FXRuler::detach (   )  [virtual]


Detach server-side resources.

Reimplemented from FX::FXWindow.

virtual FXint FX::FXRuler::getDefaultWidth (   )  [virtual]


Return default width.

Reimplemented from FX::FXFrame.

virtual FXint FX::FXRuler::getDefaultHeight (   )  [virtual]


Return default height.

Reimplemented from FX::FXFrame.

void FX::FXRuler::setPosition (  FXint  pos,
FXbool  notify = FALSE
)


Set the current position.

FXint FX::FXRuler::getPosition (   )  const [inline]


Return the current position.

void FX::FXRuler::setContentSize (  FXint  size,
FXbool  notify = FALSE
)


Change/return content size.

FXint FX::FXRuler::getContentSize (   )  const


FXint FX::FXRuler::getDocumentLower (   )  const


Get lower edge of document.

FXint FX::FXRuler::getDocumentUpper (   )  const


Get upper edge of document.

void FX::FXRuler::setDocumentSize (  FXint  size,
FXbool  notify = FALSE
)


Change/return document size.

FXint FX::FXRuler::getDocumentSize (   )  const [inline]


void FX::FXRuler::setEdgeSpacing (  FXint  space,
FXbool  notify = FALSE
)


Change/return document edge spacing.

FXint FX::FXRuler::getEdgeSpacing (   )  const [inline]


void FX::FXRuler::setMarginLower (  FXint  mgn,
FXbool  notify = FALSE
)


Change/return lower document margin.

FXint FX::FXRuler::getMarginLower (   )  const [inline]


void FX::FXRuler::setMarginUpper (  FXint  mgn,
FXbool  notify = FALSE
)


Change/return upper document margin.

FXint FX::FXRuler::getMarginUpper (   )  const [inline]


void FX::FXRuler::setIndentFirst (  FXint  ind,
FXbool  notify = FALSE
)


Change/return first line indent.

FXint FX::FXRuler::getIndentFirst (   )  const [inline]


void FX::FXRuler::setIndentLower (  FXint  ind,
FXbool  notify = FALSE
)


Change/return lower indent.

FXint FX::FXRuler::getIndentLower (   )  const [inline]


void FX::FXRuler::setIndentUpper (  FXint  ind,
FXbool  notify = FALSE
)


Change/return upper indent.

FXint FX::FXRuler::getIndentUpper (   )  const [inline]


void FX::FXRuler::setNumberTicks (  FXint  ticks,
FXbool  notify = FALSE
)


Change/return document number placement.

FXint FX::FXRuler::getNumberTicks (   )  const [inline]


void FX::FXRuler::setMajorTicks (  FXint  ticks,
FXbool  notify = FALSE
)


Change/return document major ticks.

FXint FX::FXRuler::getMajorTicks (   )  const [inline]


void FX::FXRuler::setMediumTicks (  FXint  ticks,
FXbool  notify = FALSE
)


Change/return document medium ticks.

FXint FX::FXRuler::getMediumTicks (   )  const [inline]


void FX::FXRuler::setTinyTicks (  FXint  ticks,
FXbool  notify = FALSE
)


Change/return document tiny ticks.

FXint FX::FXRuler::getTinyTicks (   )  const [inline]


void FX::FXRuler::setPixelPerTick (  FXdouble  space,
FXbool  notify = FALSE
)


Change/return pixel per tick spacing.

FXdouble FX::FXRuler::getPixelPerTick (   )  const [inline]


void FX::FXRuler::setFont (  FXFont *  fnt,
FXbool  notify = FALSE
)


Set the text font.

FXFont* FX::FXRuler::getFont (   )  const [inline]


Get the text font.

void FX::FXRuler::setValue (  FXint  value  )


Change arrow value, relative to document position.

FXint FX::FXRuler::getValue (   )  const [inline]


Return arrow value in document.

void FX::FXRuler::setRulerStyle (  FXuint  style  )


Set ruler style.

FXuint FX::FXRuler::getRulerStyle (   )  const


Get ruler style.

void FX::FXRuler::setRulerAlignment (  FXuint  alignment,
FXbool  notify = FALSE
)


Set ruler alignment.

FXuint FX::FXRuler::getRulerAlignment (   )  const


Get ruler alignment.

FXColor FX::FXRuler::getTextColor (   )  const [inline]


Get the current text color.

void FX::FXRuler::setTextColor (  FXColor  clr  )


Set the current text color.

void FX::FXRuler::setHelpText (  const FXString &  text  )  [inline]


Set the status line help text for the ruler.

const FXString& FX::FXRuler::getHelpText (   )  const [inline]


Get the status line help text for the ruler.

void FX::FXRuler::setTipText (  const FXString &  text  )  [inline]


Set the tool tip message for the ruler.

const FXString& FX::FXRuler::getTipText (   )  const [inline]


Get the tool tip message for the ruler.

virtual void FX::FXRuler::save (  FXStream &  store  )  const [virtual]


Save label to a stream.

Reimplemented from FX::FXFrame.

virtual void FX::FXRuler::load (  FXStream &  store  )  [virtual]


Load label from a stream.

Reimplemented from FX::FXFrame.
