An Icon is an image with two additional server-side resources: a shape bitmap, which is used to mask those pixels where the background should be preserved during the drawing, and a etch bitmap, which is used to draw the icon when it is disabled. More...

#include <FXIcon.h>

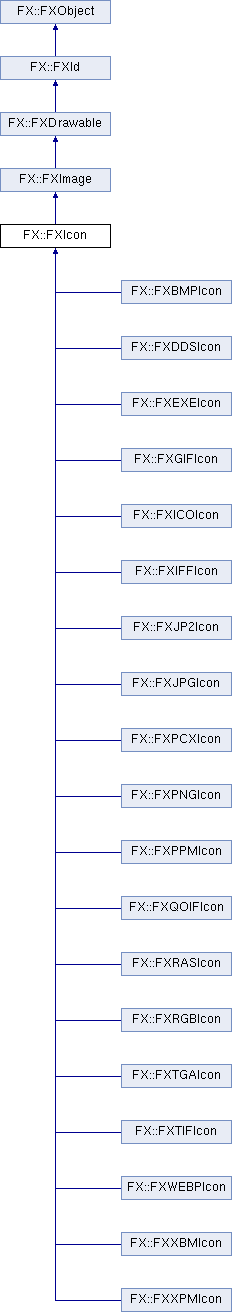

Inheritance diagram for FX::FXIcon:

Public Member Functions
	FXIcon (FXApp a, const FXColor pix=nullptr, FXColor clr=0, FXuint opts=0, FXint w=1, FXint h=1)
	Create an icon with an initial pixel buffer pix, a transparent color clr, and options as in FXImage. More...

virtual void	create ()
	Create the server side pixmap, the shape bitmap, and the etch bitmap, then call render() to fill it with the pixel data from the client-side buffer. More...

virtual void	detach ()
	Detach the server side pixmap, shape bitmap, and etch bitmap from the Icon. More...

virtual void	destroy ()
	Destroy the server-side pixmap and the shape bitmap and etch bitmap. More...

virtual void	render ()
	Render the server-side pixmap, shape bitmap and etch bitmap for the icon from the client-side pixel buffer.

virtual void	resize (FXint w, FXint h)
	Resize both client-side and server-side representations (if any) to the given width and height. More...

FXColor	getTransparentColor () const
	Get transparency color.

void	setTransparentColor (FXColor color)
	Change transparency color.

FXshort	getThresholdValue () const
	Get threshold value.

void	setThresholdValue (FXshort value)
	Change threshold value.

virtual	~FXIcon ()
	Destructor.

Public Member Functions inherited from FX::FXImage
	FXImage (FXApp a, const FXColor pix=nullptr, FXuint opts=0, FXint w=1, FXint h=1)
	Create an image. More...

void	setOptions (FXuint opts)
	Change options.

FXuint	getOptions () const
	To get to the option flags.

void	setOwned (FXbool owned)
	Set pixel data ownership flag.

FXbool	isOwned () const
	Get pixel data ownership flag.

virtual void	setData (FXColor *pix, FXuint opts=0)
	Populate the image with new pixel data of the same size; it will assume ownership of the pixel data if image IMAGE_OWNED option is passed. More...

virtual void	setData (FXColor *pix, FXuint opts, FXint w, FXint h)
	Populate the image with new pixel data of a new size; it will assume ownership of the pixel data if image IMAGE_OWNED option is passed. More...

FXColor *	getData () const
	Return pointer to the pixel data of the image.

FXColor	getPixel (FXint x, FXint y) const
	Get pixel at x,y.

void	setPixel (FXint x, FXint y, FXColor color)
	Change pixel at x,y.

FXbool	hasAlpha () const
	Scan the image and return false if fully opaque.

virtual void	restore ()
	Retrieves pixels from the server-side image. More...

virtual void	release ()
	Release the client-side pixels buffer, free it if it was owned. More...

virtual void	scale (FXint w, FXint h, FXint quality=0)
	Rescale pixels image to the specified width and height; this calls resize() to adjust the client and server side representations.

virtual void	mirror (FXbool horizontal, FXbool vertical)
	Mirror image horizontally and/or vertically.

virtual void	rotate (FXint degrees)
	Rotate image by degrees ccw; this calls resize() to adjust the client and server side representations if necessary.

virtual void	crop (FXint x, FXint y, FXint w, FXint h, FXColor color=0)
	Crop image to given rectangle; this calls resize() to adjust the client and server side representations. More...

virtual void	fill (FXColor color)
	Fill image with uniform color.

virtual void	fade (FXColor color, FXint factor=255)
	Fade image to uniform color.

virtual void	xshear (FXint shear, FXColor clr=0)
	Shear image horizontally; the number of pixels is equal to the shear parameter times 256. More...

virtual void	yshear (FXint shear, FXColor clr=0)
	Shear image vertically; the number of pixels is equal to the shear parameter times 256. More...

virtual void	hgradient (FXColor left, FXColor right)
	Fill horizontal gradient.

virtual void	vgradient (FXColor top, FXColor bottom)
	Fill vertical gradient.

virtual void	gradient (FXColor topleft, FXColor topright, FXColor bottomleft, FXColor bottomright)
	Fill with gradient.

virtual void	blend (FXColor color)
	Blend image over uniform color.

virtual void	invert ()
	Invert colors of an image.

virtual void	colorize (FXColor color)
	Colorize image based on luminance.

virtual FXbool	savePixels (FXStream &store) const
	Save pixel data only.

virtual FXbool	loadPixels (FXStream &store)
	Load pixel data only.

virtual void	save (FXStream &store) const
	Save object to stream.

virtual void	load (FXStream &store)
	Load object from stream.

virtual	~FXImage ()
	Destructor.

Public Member Functions inherited from FX::FXDrawable
FXVisual *	getVisual () const
	Get the visual.

FXint	getWidth () const
	Width of drawable.

FXint	getHeight () const
	Height of drawable.

void	setVisual (FXVisual *vis)
	Change visual.

virtual	~FXDrawable ()
	Cleanup.

Public Member Functions inherited from FX::FXId
FXApp *	getApp () const
	Get application.

FXID	id () const
	Get XID handle.

void	setUserData (FXptr ptr)
	Set user data pointer.

FXptr	getUserData () const
	Get user data pointer.

virtual	~FXId ()
	Destructor.

Public Member Functions inherited from FX::FXObject
const FXchar *	getClassName () const
	Get class name of some object.

FXbool	isMemberOf (const FXMetaClass *metaclass) const
	Check if object is member of metaclass.

virtual long	tryHandle (FXObject sender, FXSelector sel, void ptr)
	Try handle message safely, catching certain exceptions.

virtual long	onDefault (FXObject , FXSelector, void )
	Called for unhandled messages.

virtual	~FXObject ()
	Virtual destructor.

Protected Member Functions
FXColor	guesstransp () const

FXshort	guessthresh () const

Protected Member Functions inherited from FX::FXDrawable
	FXDrawable (FXApp *a, FXint w, FXint h)

Protected Member Functions inherited from FX::FXId
	FXId (FXApp *a)

Protected Attributes
FXID	shape

FXID	etch

FXColor	transp

FXshort	thresh

Protected Attributes inherited from FX::FXImage
FXColor *	data

FXuint	options

Protected Attributes inherited from FX::FXDrawable
FXVisual *	visual

FXint	width

FXint	height

Protected Attributes inherited from FX::FXId
FXID	xid

Friends
class	FXDC

class	FXWindow

class	FXDCWindow

class	FXDrawable

class	FXTopWindow

Detailed Description

An Icon is an image with two additional server-side resources: a shape bitmap, which is used to mask those pixels where the background should be preserved during the drawing, and a etch bitmap, which is used to draw the icon when it is disabled.

Constructor & Destructor Documentation

◆ FXIcon()

FX::FXIcon::FXIcon	(	FXApp *	a,
		const FXColor *	pix = `nullptr`,
		FXColor	clr = `0`,
		FXuint	opts = `0`,
		FXint	w = `1`,
		FXint	h = `1`
	)

Create an icon with an initial pixel buffer pix, a transparent color clr, and options as in FXImage.

The transparent color is used to determine which pixel values are transparent, i.e. need to be masked out in the absence of a true alpha channel. If the flag IMAGE_OPAQUE is passed, the shape and etch bitmaps are generated as if the image is fully opaque, even if it has an alpha channel or transparancy color. The flag IMAGE_ALPHACOLOR is used to force a specific alpha color instead of the alpha channel obtained from the image file. Specifying IMAGE_ALPHAGUESS causes Icon to obtain the alpha color from the background color of the image; it has the same effect as IMAGE_ALPHACOLOR in the sense that the icon will be transparent for those colors matching the alpha color.

Member Function Documentation

◆ create()

virtual void FX::FXIcon::create ( )

virtual

Create the server side pixmap, the shape bitmap, and the etch bitmap, then call render() to fill it with the pixel data from the client-side buffer.

After the server-side pixmap and bitmaps have been created, the client-side pixel buffer will be deleted unless IMAGE_KEEP has been specified. If the pixel buffer is not owned, i.e. the flag IMAGE_OWNED is not set, the pixel buffer will not be deleted; however the pixel buffer will be set to NULL.

Reimplemented from FX::FXImage.

◆ destroy()

virtual void FX::FXIcon::destroy ( )

virtual

Destroy the server-side pixmap and the shape bitmap and etch bitmap.

The client-side pixel buffer is not affected.

Reimplemented from FX::FXImage.

◆ detach()

virtual void FX::FXIcon::detach ( )

virtual

Detach the server side pixmap, shape bitmap, and etch bitmap from the Icon.

Afterwards, the Icon is left as if it never had a server-side resources.

Reimplemented from FX::FXImage.

◆ resize()

virtual void FX::FXIcon::resize	(	FXint	w,
		FXint	h
	)

virtual

Resize both client-side and server-side representations (if any) to the given width and height.

The new representations typically contain garbage after this operation and need to be re-filled.

Reimplemented from FX::FXImage.

The documentation for this class was generated from the following file:

/home/jeroen/FOX/fox/fox-1.7.86/include/FXIcon.h
