FX::FXArrowButton Class Reference

Button with an arrow; the arrow can point in any direction. More...

#include <FXArrowButton.h>

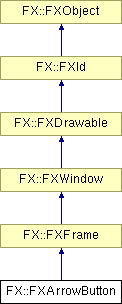

Inheritance diagram for FX::FXArrowButton:

List of all members.

Public Member Functions
	FXArrowButton (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=ARROW_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
virtual FXint	getDefaultWidth ()
virtual FXint	getDefaultHeight ()
virtual void	enable ()
virtual void	disable ()
virtual FXbool	canFocus () const
void	setState (FXbool s)
FXbool	getState () const
void	setHelpText (const FXString &text)
FXString	getHelpText () const
void	setTipText (const FXString &text)
FXString	getTipText () const
void	setArrowStyle (FXuint style)
FXuint	getArrowStyle () const
void	setArrowSize (FXint size)
FXint	getArrowSize () const
void	setJustify (FXuint mode)
FXuint	getJustify () const
FXColor	getArrowColor () const
void	setArrowColor (FXColor clr)
virtual void	save (FXStream &store) const
virtual void	load (FXStream &store)
virtual	~FXArrowButton ()

---

Detailed Description

Button with an arrow; the arrow can point in any direction.

When clicked, the arrow button sends a SEL_COMMAND to its target. When ARROW_REPEAT is passed, the arrow button sends a SEL_COMMAND repeatedly while the button is pressed. The option ARROW_AUTO together with ARROW_REPEAT makes the arrow button work in repeat mode simply by hovering the cursor over it.

See also:

• Arrow style options.

---

Constructor & Destructor Documentation

FX::FXArrowButton::FXArrowButton (  FXComposite *  p, FXObject *  tgt = NULL, FXSelector  sel = 0, FXuint  opts = ARROW_NORMAL, FXint  x = 0, FXint  y = 0, FXint  w = 0, FXint  h = 0, FXint  pl = DEFAULT_PAD, FXint  pr = DEFAULT_PAD, FXint  pt = DEFAULT_PAD, FXint  pb = DEFAULT_PAD )

Construct arrow button.

virtual FX::FXArrowButton::~FXArrowButton (   )  [virtual]

Destructor.

---

Member Function Documentation

virtual FXint FX::FXArrowButton::getDefaultWidth (   )  [virtual]

Get default width. Reimplemented from FX::FXFrame.

virtual FXint FX::FXArrowButton::getDefaultHeight (   )  [virtual]

Get default height. Reimplemented from FX::FXFrame.

virtual void FX::FXArrowButton::enable (   )  [virtual]

Enable the button. Reimplemented from FX::FXWindow.

virtual void FX::FXArrowButton::disable (   )  [virtual]

Disable the button. Reimplemented from FX::FXWindow.

virtual FXbool FX::FXArrowButton::canFocus (   )  const [virtual]

Returns true because a button can receive focus. Reimplemented from FX::FXWindow.

void FX::FXArrowButton::setState (  FXbool  s  )

Set the button state (where TRUE means the button is down).

FXbool FX::FXArrowButton::getState (   )  const [inline]

Get the button state (where TRUE means the button is down).

void FX::FXArrowButton::setHelpText (  const FXString &  text  )  [inline]

Set status line help text for this arrow button.

FXString FX::FXArrowButton::getHelpText (   )  const [inline]

Get status line help text for this arrow button.

void FX::FXArrowButton::setTipText (  const FXString &  text  )  [inline]

Set tool tip message for this arrow button.

FXString FX::FXArrowButton::getTipText (   )  const [inline]

Get tool tip message for this arrow button.

void FX::FXArrowButton::setArrowStyle (  FXuint  style  )

Set the arrow style flags.

FXuint FX::FXArrowButton::getArrowStyle (   )  const

Get the arrow style flags.

void FX::FXArrowButton::setArrowSize (  FXint  size  )

Set the default arrow size.

FXint FX::FXArrowButton::getArrowSize (   )  const [inline]

Get the default arrow size.

void FX::FXArrowButton::setJustify (  FXuint  mode  )

Set the current justification mode.

FXuint FX::FXArrowButton::getJustify (   )  const

Get the current justification mode.

FXColor FX::FXArrowButton::getArrowColor (   )  const [inline]

Get the fill color for the arrow.

void FX::FXArrowButton::setArrowColor (  FXColor  clr  )

Set the fill color for the arrow.

virtual void FX::FXArrowButton::save (  FXStream &  store  )  const [virtual]

Save label to a stream. Reimplemented from FX::FXFrame.

virtual void FX::FXArrowButton::load (  FXStream &  store  )  [virtual]

Load label from a stream. Reimplemented from FX::FXFrame.
