FX::FXWindow Class Reference

Base class for all windows. More...

#include <FXWindow.h>

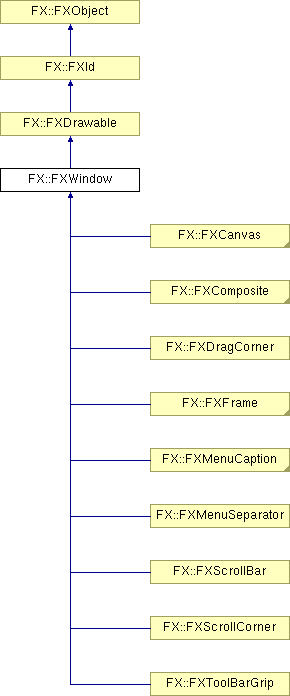

Inheritance diagram for FX::FXWindow:

FX::FXDrawable FX::FXId FX::FXObject FX::FXCanvas FX::FXComposite FX::FXDragCorner FX::FXFrame FX::FXMenuCaption FX::FXMenuSeparator FX::FXScrollBar FX::FXScrollCorner FX::FXToolBarGrip List of all members.

Public Types

enum  {
  ID_NONE,
  ID_HIDE,
  ID_SHOW,
  ID_TOGGLESHOWN,
  ID_LOWER,
  ID_RAISE,
  ID_DELETE,
  ID_DISABLE,
  ID_ENABLE,
  ID_UNCHECK,
  ID_CHECK,
  ID_UNKNOWN,
  ID_UPDATE,
  ID_AUTOSCROLL,
  ID_TIPTIMER,
  ID_HSCROLLED,
  ID_VSCROLLED,
  ID_SETVALUE,
  ID_SETINTVALUE,
  ID_SETREALVALUE,
  ID_SETSTRINGVALUE,
  ID_SETICONVALUE,
  ID_SETINTRANGE,
  ID_SETREALRANGE,
  ID_GETINTVALUE,
  ID_GETREALVALUE,
  ID_GETSTRINGVALUE,
  ID_GETICONVALUE,
  ID_GETINTRANGE,
  ID_GETREALRANGE,
  ID_SETHELPSTRING,
  ID_GETHELPSTRING,
  ID_SETTIPSTRING,
  ID_GETTIPSTRING,
  ID_QUERY_TIP,
  ID_QUERY_HELP,
  ID_QUERY_MENU,
  ID_HOTKEY,
  ID_ACCEL,
  ID_UNPOST,
  ID_POST,
  ID_MDI_TILEHORIZONTAL,
  ID_MDI_TILEVERTICAL,
  ID_MDI_CASCADE,
  ID_MDI_MAXIMIZE,
  ID_MDI_MINIMIZE,
  ID_MDI_RESTORE,
  ID_MDI_CLOSE,
  ID_MDI_WINDOW,
  ID_MDI_MENUWINDOW,
  ID_MDI_MENUMINIMIZE,
  ID_MDI_MENURESTORE,
  ID_MDI_MENUCLOSE,
  ID_MDI_NEXT,
  ID_MDI_PREV,
  ID_LAST
}

Public Member Functions

 FXWindow (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
FXWindow * getParent () const
FXWindow * getOwner () const
FXWindow * getShell () const
FXWindow * getRoot () const
FXWindow * getNext () const
FXWindow * getPrev () const
FXWindow * getFirst () const
FXWindow * getLast () const
FXWindow * getFocus () const
void setKey (FXuint k)
FXuint getKey () const
void setTarget (FXObject *t)
FXObject * getTarget () const
void setSelector (FXSelector sel)
FXSelector getSelector () const
FXint getX () const
FXint getY () const
virtual FXint getDefaultWidth ()
virtual FXint getDefaultHeight ()
virtual FXint getWidthForHeight (FXint givenheight)
virtual FXint getHeightForWidth (FXint givenwidth)
void setX (FXint x)
void setY (FXint y)
void setWidth (FXint w)
void setHeight (FXint h)
void setLayoutHints (FXuint lout)
FXuint getLayoutHints () const
FXAccelTable * getAccelTable () const
void setAccelTable (FXAccelTable *acceltable)
void addHotKey (FXHotKey code)
void remHotKey (FXHotKey code)
void setHelpTag (const FXString &text)
FXString getHelpTag () const
FXbool isShell () const
FXbool isOwnerOf (const FXWindow *window) const
FXbool isChildOf (const FXWindow *window) const
FXbool containsChild (const FXWindow *child) const
FXWindow * getChildAt (FXint x, FXint y) const
FXint numChildren () const
FXint indexOfChild (const FXWindow *window) const
FXWindow * childAtIndex (FXint index) const
void setDefaultCursor (FXCursor *cur)
FXCursor * getDefaultCursor () const
void setDragCursor (FXCursor *cur)
FXCursor * getDragCursor () const
FXint getCursorPosition (FXint &x, FXint &y, FXuint &buttons) const
FXint setCursorPosition (FXint x, FXint y)
FXbool isEnabled () const
FXbool isActive () const
virtual FXbool canFocus () const
FXbool hasFocus () const
virtual void setFocus ()
virtual void killFocus ()
virtual void setDefault (FXbool enable=TRUE)
FXbool isDefault () const
void setInitial (FXbool enable=TRUE)
FXbool isInitial () const
virtual void enable ()
virtual void disable ()
virtual void create ()
virtual void attach (FXID w)
virtual void detach ()
virtual void destroy ()
virtual void raise ()
virtual void lower ()
virtual void move (FXint x, FXint y)
virtual void resize (FXint w, FXint h)
virtual void position (FXint x, FXint y, FXint w, FXint h)
virtual void recalc ()
virtual void layout ()
void forceRefresh ()
virtual void reparent (FXWindow *newparent)
void scroll (FXint x, FXint y, FXint w, FXint h, FXint dx, FXint dy) const
void update (FXint x, FXint y, FXint w, FXint h) const
void update () const
void repaint (FXint x, FXint y, FXint w, FXint h) const
void repaint () const
void grab ()
void ungrab ()
FXbool grabbed () const
void grabKeyboard ()
void ungrabKeyboard ()
FXbool grabbedKeyboard () const
virtual void show ()
virtual void hide ()
FXbool shown () const
virtual FXbool isComposite () const
FXbool underCursor () const
FXbool hasSelection () const
FXbool acquireSelection (const FXDragType *types, FXuint numtypes)
FXbool releaseSelection ()
FXbool hasClipboard () const
FXbool acquireClipboard (const FXDragType *types, FXuint numtypes)
FXbool releaseClipboard ()
void dropEnable ()
void dropDisable ()
FXbool isDropEnabled () const
FXbool isDragging () const
FXbool beginDrag (const FXDragType *types, FXuint numtypes)
FXbool handleDrag (FXint x, FXint y, FXDragAction action=DRAG_COPY)
FXbool endDrag (FXbool drop=TRUE)
FXbool isDropTarget () const
void setDragRectangle (FXint x, FXint y, FXint w, FXint h, FXbool wantupdates=TRUE) const
void clearDragRectangle () const
void acceptDrop (FXDragAction action=DRAG_ACCEPT) const
FXDragAction didAccept () const
FXbool inquireDNDTypes (FXDNDOrigin origin, FXDragType *&types, FXuint &numtypes) const
FXbool offeredDNDType (FXDNDOrigin origin, FXDragType type) const
FXDragAction inquireDNDAction () const
FXbool setDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *data, FXuint size) const
FXbool getDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *&data, FXuint &size) const
virtual FXbool contains (FXint parentx, FXint parenty) const
void translateCoordinatesFrom (FXint &tox, FXint &toy, const FXWindow *fromwindow, FXint fromx, FXint fromy) const
void translateCoordinatesTo (FXint &tox, FXint &toy, const FXWindow *towindow, FXint fromx, FXint fromy) const
virtual void setBackColor (FXColor clr)
FXColor getBackColor () const
void linkBefore (FXWindow *sibling)
void linkAfter (FXWindow *sibling)
virtual FXbool doesSaveUnder () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)
virtual ~FXWindow ()

Static Public Member Functions

FXWindow * commonAncestor (FXWindow *a, FXWindow *b)
FXint getWindowCount ()

Static Public Attributes

FXDragType deleteType
FXDragType textType
FXDragType colorType
FXDragType urilistType
const FXDragType stringType
const FXDragType imageType
const FXchar deleteTypeName []
const FXchar textTypeName []
const FXchar colorTypeName []
const FXchar urilistTypeName []

Detailed Description

Base class for all windows.

See also:

Member Enumeration Documentation

anonymous enum


Enumeration values:
ID_HIDE  ID_HIDE+FALSE.
ID_SHOW  ID_HIDE+TRUE.
ID_DISABLE  ID_DISABLE+FALSE.
ID_ENABLE  ID_DISABLE+TRUE.
ID_UNCHECK  ID_UNCHECK+FALSE.
ID_CHECK  ID_UNCHECK+TRUE.
ID_UNKNOWN  ID_UNCHECK+MAYBE.

Constructor & Destructor Documentation

FX::FXWindow::FXWindow (  FXComposite *  p,
FXuint  opts = 0,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0
)


Constructor.

virtual FX::FXWindow::~FXWindow (   )  [virtual]


Destroy window.

Member Function Documentation

FXWindow* FX::FXWindow::getParent (   )  const [inline]


Return a pointer to the parent window.

FXWindow* FX::FXWindow::getOwner (   )  const [inline]


Return a pointer to the owner window.

FXWindow* FX::FXWindow::getShell (   )  const


Return a pointer to the shell window.

FXWindow* FX::FXWindow::getRoot (   )  const


Return a pointer to the root window.

FXWindow* FX::FXWindow::getNext (   )  const [inline]


Return a pointer to the next (sibling) window, if any.

FXWindow* FX::FXWindow::getPrev (   )  const [inline]


Return a pointer to the previous (sibling) window , if any.

FXWindow* FX::FXWindow::getFirst (   )  const [inline]


Return a pointer to this window's first child window , if any.

FXWindow* FX::FXWindow::getLast (   )  const [inline]


Return a pointer to this window's last child window, if any.

FXWindow* FX::FXWindow::getFocus (   )  const [inline]


Return a pointer to the currently focused child window.

void FX::FXWindow::setKey (  FXuint  k  )  [inline]


Change window key.

FXuint FX::FXWindow::getKey (   )  const [inline]


Return window key.

void FX::FXWindow::setTarget (  FXObject *  t  )  [inline]


Set the message target object for this window.

FXObject* FX::FXWindow::getTarget (   )  const [inline]


Get the message target object for this window, if any.

void FX::FXWindow::setSelector (  FXSelector  sel  )  [inline]


Set the message identifier for this window.

FXSelector FX::FXWindow::getSelector (   )  const [inline]


Get the message identifier for this window.

FXint FX::FXWindow::getX (   )  const [inline]


Get this window's x-coordinate, in the parent's coordinate system.

FXint FX::FXWindow::getY (   )  const [inline]


Get this window's y-coordinate, in the parent's coordinate system.

virtual FXint FX::FXWindow::getDefaultWidth (   )  [virtual]


Return the default width of this window.

Reimplemented in FX::FX4Splitter, FX::FXArrowButton, FX::FXBitmapFrame, FX::FXCheckButton, FX::FXColorBar, FX::FXColorWell, FX::FXColorWheel, FX::FXComboBox, FX::FXComposite, FX::FXDial, FX::FXDragCorner, FX::FXFoldingList, FX::FXFrame, FX::FXGradientBar, FX::FXGroupBox, FX::FXHeader, FX::FXHorizontalFrame, FX::FXImageFrame, FX::FXLabel, FX::FXList, FX::FXListBox, FX::FXMatrix, FX::FXMDIDeleteButton, FX::FXMDIRestoreButton, FX::FXMDIMaximizeButton, FX::FXMDIMinimizeButton, FX::FXMDIWindowButton, FX::FXMDIChild, FX::FXMDIClient, FX::FXMenuButton, FX::FXMenuCaption, FX::FXMenuCheck, FX::FXMenuCommand, FX::FXMenuRadio, FX::FXMenuSeparator, FX::FXMenuTitle, FX::FXOption, FX::FXOptionMenu, FX::FXPacker, FX::FXPopup, FX::FXProgressBar, FX::FXRadioButton, FX::FXRealSlider, FX::FXRealSpinner, FX::FXRootWindow, FX::FXRuler, FX::FXScrollArea, FX::FXScrollBar, FX::FXScrollPane, FX::FXSeparator, FX::FXSlider, FX::FXSpinner, FX::FXSplitter, FX::FXSpring, FX::FXStatusBar, FX::FXStatusLine, FX::FXSwitcher, FX::FXTabBar, FX::FXTabBook, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToggleButton, FX::FXToolBar, FX::FXToolBarGrip, FX::FXToolBarShell, FX::FXToolBarTab, FX::FXToolTip, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, FX::FXTriStateButton, and FX::FXVerticalFrame.

virtual FXint FX::FXWindow::getDefaultHeight (   )  [virtual]


Return the default height of this window.

Reimplemented in FX::FX4Splitter, FX::FXArrowButton, FX::FXBitmapFrame, FX::FXCheckButton, FX::FXColorBar, FX::FXColorWell, FX::FXColorWheel, FX::FXComboBox, FX::FXComposite, FX::FXDial, FX::FXDragCorner, FX::FXFoldingList, FX::FXFrame, FX::FXGradientBar, FX::FXGroupBox, FX::FXHeader, FX::FXHorizontalFrame, FX::FXImageFrame, FX::FXLabel, FX::FXList, FX::FXListBox, FX::FXMatrix, FX::FXMDIDeleteButton, FX::FXMDIRestoreButton, FX::FXMDIMaximizeButton, FX::FXMDIMinimizeButton, FX::FXMDIWindowButton, FX::FXMDIChild, FX::FXMDIClient, FX::FXMenuButton, FX::FXMenuCaption, FX::FXMenuCheck, FX::FXMenuCommand, FX::FXMenuRadio, FX::FXMenuSeparator, FX::FXMenuTitle, FX::FXOption, FX::FXOptionMenu, FX::FXPacker, FX::FXPopup, FX::FXProgressBar, FX::FXRadioButton, FX::FXRealSlider, FX::FXRealSpinner, FX::FXRootWindow, FX::FXRuler, FX::FXScrollArea, FX::FXScrollBar, FX::FXScrollPane, FX::FXSeparator, FX::FXSlider, FX::FXSpinner, FX::FXSplitter, FX::FXSpring, FX::FXStatusBar, FX::FXStatusLine, FX::FXSwitcher, FX::FXTabBar, FX::FXTabBook, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToggleButton, FX::FXToolBar, FX::FXToolBarGrip, FX::FXToolBarShell, FX::FXToolBarTab, FX::FXToolTip, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, FX::FXTriStateButton, and FX::FXVerticalFrame.

virtual FXint FX::FXWindow::getWidthForHeight (  FXint  givenheight  )  [virtual]


Return width for given height.

Reimplemented in FX::FXToolBar.

virtual FXint FX::FXWindow::getHeightForWidth (  FXint  givenwidth  )  [virtual]


Return height for given width.

Reimplemented in FX::FXToolBar.

void FX::FXWindow::setX (  FXint  x  )


Set this window's x-coordinate, in the parent's coordinate system.

void FX::FXWindow::setY (  FXint  y  )


Set this window's y-coordinate, in the parent's coordinate system.

void FX::FXWindow::setWidth (  FXint  w  )


Set the window width.

void FX::FXWindow::setHeight (  FXint  h  )


Set the window height.

void FX::FXWindow::setLayoutHints (  FXuint  lout  )


Set layout hints for this window.

FXuint FX::FXWindow::getLayoutHints (   )  const


Get layout hints for this window.

FXAccelTable* FX::FXWindow::getAccelTable (   )  const [inline]


Return a pointer to the accelerator table.

void FX::FXWindow::setAccelTable (  FXAccelTable *  acceltable  )  [inline]


Set the accelerator table.

void FX::FXWindow::addHotKey (  FXHotKey  code  )


Add a hot key.

void FX::FXWindow::remHotKey (  FXHotKey  code  )


Remove a hot key.

void FX::FXWindow::setHelpTag (  const FXString &  text  )  [inline]


Change help tag for this widget.

FXString FX::FXWindow::getHelpTag (   )  const [inline]


Get the help tag for this widget.

FXbool FX::FXWindow::isShell (   )  const


Return true if window is a shell window.

FXbool FX::FXWindow::isOwnerOf (  const FXWindow *  window  )  const


Return true if specified window is owned by this window.

FXbool FX::FXWindow::isChildOf (  const FXWindow *  window  )  const


Return true if specified window is ancestor of this window.

FXbool FX::FXWindow::containsChild (  const FXWindow *  child  )  const


Return true if this window contains child in its subtree.

FXWindow* FX::FXWindow::getChildAt (  FXint  x,
FXint  y
)  const


Return the child window at specified coordinates.

FXint FX::FXWindow::numChildren (   )  const


Return the number of child windows for this window.

FXint FX::FXWindow::indexOfChild (  const FXWindow *  window  )  const


Return the index (starting from zero) of the specified child window, or -1 if the window is not a child or NULL.

FXWindow* FX::FXWindow::childAtIndex (  FXint  index  )  const


Return the child window at specified index, or NULL if the index is negative or out of range.

FXWindow* FX::FXWindow::commonAncestor (  FXWindow *  a,
FXWindow *  b
)  [static]


Return the common ancestor of window a and window b.

FXint FX::FXWindow::getWindowCount (   )  [inline, static]


Get number of existing windows.

void FX::FXWindow::setDefaultCursor (  FXCursor *  cur  )


Set the default cursor for this window.

FXCursor* FX::FXWindow::getDefaultCursor (   )  const [inline]


Return the default cursor for this window.

void FX::FXWindow::setDragCursor (  FXCursor *  cur  )


Set the drag cursor for this window.

FXCursor* FX::FXWindow::getDragCursor (   )  const [inline]


Return the drag cursor for this window.

FXint FX::FXWindow::getCursorPosition (  FXint &  x,
FXint &  y,
FXuint &  buttons
)  const


Return the cursor position and mouse button-state.

FXint FX::FXWindow::setCursorPosition (  FXint  x,
FXint  y
)


Warp the cursor to the new position.

FXbool FX::FXWindow::isEnabled (   )  const


Return true if this window is able to receive mouse and keyboard events.

FXbool FX::FXWindow::isActive (   )  const


Return true if the window is active.

virtual FXbool FX::FXWindow::canFocus (   )  const [virtual]


Return true if this window is a control capable of receiving the focus.

Reimplemented in FX::FXArrowButton, FX::FXBitmapView, FX::FXButton, FX::FXCanvas, FX::FXCheckButton, FX::FXColorWell, FX::FXFoldingList, FX::FXIconList, FX::FXImageView, FX::FXList, FX::FXMDIChild, FX::FXMenuButton, FX::FXMenuCascade, FX::FXMenuCommand, FX::FXMenuTitle, FX::FXOption, FX::FXOptionMenu, FX::FXRadioButton, FX::FXTabItem, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToggleButton, FX::FXToolBarTab, and FX::FXTreeList.

FXbool FX::FXWindow::hasFocus (   )  const


Return true if this window has the focus.

virtual void FX::FXWindow::setFocus (   )  [virtual]


Move the focus to this window.

Reimplemented in FX::FXButton, FX::FXColorWell, FX::FXFoldingList, FX::FXIconList, FX::FXList, FX::FXMDIChild, FX::FXMenuCascade, FX::FXMenuCommand, FX::FXMenuTitle, FX::FXOption, FX::FXPopup, FX::FXRootWindow, FX::FXShell, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXTopWindow, and FX::FXTreeList.

virtual void FX::FXWindow::killFocus (   )  [virtual]


Remove the focus from this window.

Reimplemented in FX::FXButton, FX::FXColorWell, FX::FXFoldingList, FX::FXIconList, FX::FXList, FX::FXMenuButton, FX::FXMenuCascade, FX::FXMenuCommand, FX::FXMenuTitle, FX::FXOption, FX::FXOptionMenu, FX::FXPopup, FX::FXRootWindow, FX::FXShell, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXTopWindow, and FX::FXTreeList.

virtual void FX::FXWindow::setDefault (  FXbool  enable = TRUE  )  [virtual]


This changes the default window which responds to the Return key in a dialog.

If enable is TRUE, this window becomes the default window; when enable is FALSE, this window will be no longer the default window. Finally, when enable is MAYBE, the default window will revert to the initial default window.

Reimplemented in FX::FXButton.

FXbool FX::FXWindow::isDefault (   )  const


Return true if this is the default window.

void FX::FXWindow::setInitial (  FXbool  enable = TRUE  )


Make this window the initial default window.

FXbool FX::FXWindow::isInitial (   )  const


Return true if this is the initial default window.

virtual void FX::FXWindow::enable (   )  [virtual]


Enable the window to receive mouse and keyboard events.

Reimplemented in FX::FXArrowButton, FX::FXComboBox, FX::FXGroupBox, FX::FXLabel, FX::FXListBox, FX::FXMenuCaption, FX::FXRealSlider, FX::FXRealSpinner, FX::FXScrollCorner, FX::FXSlider, FX::FXSpinner, FX::FXText, FX::FXTextField, FX::FXToolBarTab, and FX::FXTreeListBox.

virtual void FX::FXWindow::disable (   )  [virtual]


Disable the window from receiving mouse and keyboard events.

Reimplemented in FX::FXArrowButton, FX::FXComboBox, FX::FXGroupBox, FX::FXLabel, FX::FXListBox, FX::FXMenuCaption, FX::FXRealSlider, FX::FXRealSpinner, FX::FXScrollCorner, FX::FXSlider, FX::FXSpinner, FX::FXText, FX::FXTextField, FX::FXToolBarTab, and FX::FXTreeListBox.

virtual void FX::FXWindow::create (   )  [virtual]


Create all of the server-side resources for this window.

Reimplemented from FX::FXId.

Reimplemented in FX::FXBitmapFrame, FX::FXBitmapView, FX::FXColorBar, FX::FXColorSelector, FX::FXColorWell, FX::FXColorWheel, FX::FXComboBox, FX::FXComposite, FX::FXDirBox, FX::FXDirList, FX::FXDriveBox, FX::FXFileList, FX::FXFoldingList, FX::FXFontSelector, FX::FXGLCanvas, FX::FXGLViewer, FX::FXGradientBar, FX::FXGroupBox, FX::FXHeader, FX::FXIconList, FX::FXImageFrame, FX::FXImageView, FX::FXLabel, FX::FXList, FX::FXListBox, FX::FXMainWindow, FX::FXMDIChild, FX::FXMenuButton, FX::FXMenuCaption, FX::FXMenuCascade, FX::FXMenuTitle, FX::FXOptionMenu, FX::FXPrintDialog, FX::FXProgressBar, FX::FXRootWindow, FX::FXRuler, FX::FXShell, FX::FXStatusLine, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToggleButton, FX::FXToolBarShell, FX::FXToolTip, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, and FX::FXTriStateButton.

virtual void FX::FXWindow::attach (  FXID  w  )  [virtual]


Attach foreign window handle to this window.

virtual void FX::FXWindow::detach (   )  [virtual]


Detach the server-side resources for this window.

Reimplemented from FX::FXId.

Reimplemented in FX::FXBitmapView, FX::FXColorBar, FX::FXColorWell, FX::FXColorWheel, FX::FXComboBox, FX::FXComposite, FX::FXDirBox, FX::FXDirList, FX::FXDriveBox, FX::FXFileList, FX::FXFoldingList, FX::FXGLCanvas, FX::FXGLViewer, FX::FXGroupBox, FX::FXHeader, FX::FXIconList, FX::FXImageView, FX::FXLabel, FX::FXList, FX::FXListBox, FX::FXMDIChild, FX::FXMenuButton, FX::FXMenuCaption, FX::FXMenuCascade, FX::FXMenuTitle, FX::FXOptionMenu, FX::FXProgressBar, FX::FXRootWindow, FX::FXRuler, FX::FXStatusLine, FX::FXTable, FX::FXText, FX::FXToggleButton, FX::FXToolTip, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, and FX::FXTriStateButton.

virtual void FX::FXWindow::destroy (   )  [virtual]


Destroy the server-side resources for this window.

Reimplemented from FX::FXId.

Reimplemented in FX::FXComboBox, FX::FXComposite, FX::FXDirBox, FX::FXDirList, FX::FXDriveBox, FX::FXFileList, FX::FXGLCanvas, FX::FXListBox, FX::FXMenuCascade, FX::FXOptionMenu, FX::FXRootWindow, and FX::FXTreeListBox.

virtual void FX::FXWindow::raise (   )  [virtual]


Raise this window to the top of the stacking order.

virtual void FX::FXWindow::lower (   )  [virtual]


Lower this window to the bottom of the stacking order.

virtual void FX::FXWindow::move (  FXint  x,
FXint  y
)  [virtual]


Move this window to the specified position in the parent's coordinates.

Reimplemented in FX::FXMDIChild, FX::FXRootWindow, and FX::FXTopWindow.

virtual void FX::FXWindow::resize (  FXint  w,
FXint  h
)  [virtual]


Resize this window to the specified width and height.

Reimplemented from FX::FXDrawable.

Reimplemented in FX::FXIconList, FX::FXMDIChild, FX::FXRootWindow, FX::FXText, and FX::FXTopWindow.

virtual void FX::FXWindow::position (  FXint  x,
FXint  y,
FXint  w,
FXint  h
)  [virtual]


Move and resize this window in the parent's coordinates.

Reimplemented in FX::FXIconList, FX::FXMDIChild, FX::FXRootWindow, FX::FXText, and FX::FXTopWindow.

virtual void FX::FXWindow::recalc (   )  [virtual]


Mark this window's layout as dirty for later layout.

Reimplemented in FX::FXFoldingList, FX::FXIconList, FX::FXList, FX::FXRootWindow, FX::FXShell, FX::FXTable, FX::FXText, and FX::FXTreeList.

virtual void FX::FXWindow::layout (   )  [virtual]


Perform layout immediately.

Reimplemented in FX::FX4Splitter, FX::FXBitmapView, FX::FXColorBar, FX::FXColorWheel, FX::FXComboBox, FX::FXComposite, FX::FXFoldingList, FX::FXGLViewer, FX::FXGradientBar, FX::FXGroupBox, FX::FXHeader, FX::FXHorizontalFrame, FX::FXIconList, FX::FXImageView, FX::FXList, FX::FXListBox, FX::FXMatrix, FX::FXMDIChild, FX::FXMDIClient, FX::FXOptionMenu, FX::FXPacker, FX::FXPopup, FX::FXRealSlider, FX::FXRealSpinner, FX::FXRootWindow, FX::FXScrollArea, FX::FXScrollBar, FX::FXScrollPane, FX::FXScrollWindow, FX::FXShutter, FX::FXSlider, FX::FXSpinner, FX::FXSplitter, FX::FXStatusBar, FX::FXSwitcher, FX::FXTabBar, FX::FXTabBook, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToolBar, FX::FXToolBarShell, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, and FX::FXVerticalFrame.

void FX::FXWindow::forceRefresh (   )


Force a GUI update of this window and its children.

virtual void FX::FXWindow::reparent (  FXWindow *  newparent  )  [virtual]


Change the parent for this window.

void FX::FXWindow::scroll (  FXint  x,
FXint  y,
FXint  w,
FXint  h,
FXint  dx,
FXint  dy
)  const


Scroll rectangle x,y,w,h by a shift of dx,dy.

void FX::FXWindow::update (  FXint  x,
FXint  y,
FXint  w,
FXint  h
)  const


Mark the specified rectangle to be repainted later.

void FX::FXWindow::update (   )  const


Mark the entire window to be repainted later.

void FX::FXWindow::repaint (  FXint  x,
FXint  y,
FXint  w,
FXint  h
)  const


If marked but not yet painted, paint the given rectangle now.

void FX::FXWindow::repaint (   )  const


If marked but not yet painted, paint the window now.

void FX::FXWindow::grab (   )


Grab the mouse to this window; future mouse events will be reported to this window even while the cursor goes outside of this window.

void FX::FXWindow::ungrab (   )


Release the mouse grab.

FXbool FX::FXWindow::grabbed (   )  const


Return true if the window has been grabbed.

void FX::FXWindow::grabKeyboard (   )


Grab keyboard device.

void FX::FXWindow::ungrabKeyboard (   )


Ungrab keyboard device.

FXbool FX::FXWindow::grabbedKeyboard (   )  const


Return true if active grab is in effect.

virtual void FX::FXWindow::show (   )  [virtual]


Show this window.

Reimplemented in FX::FXPopup, FX::FXScrollPane, FX::FXToolTip, and FX::FXTopWindow.

virtual void FX::FXWindow::hide (   )  [virtual]


Hide this window.

Reimplemented in FX::FXPopup, and FX::FXTopWindow.

FXbool FX::FXWindow::shown (   )  const


Return true if the window is shown.

virtual FXbool FX::FXWindow::isComposite (   )  const [virtual]


Return true if the window is composite.

Reimplemented in FX::FXComposite.

FXbool FX::FXWindow::underCursor (   )  const


Return true if the window is under the cursor.

FXbool FX::FXWindow::hasSelection (   )  const


Return true if this window owns the primary selection.

FXbool FX::FXWindow::acquireSelection (  const FXDragType *  types,
FXuint  numtypes
)


Try to acquire the primary selection, given a list of drag types.

FXbool FX::FXWindow::releaseSelection (   )


Release the primary selection.

FXbool FX::FXWindow::hasClipboard (   )  const


Return true if this window owns the clipboard.

FXbool FX::FXWindow::acquireClipboard (  const FXDragType *  types,
FXuint  numtypes
)


Try to acquire the clipboard, given a list of drag types.

FXbool FX::FXWindow::releaseClipboard (   )


Release the clipboard.

void FX::FXWindow::dropEnable (   )


Enable this window to receive drops.

void FX::FXWindow::dropDisable (   )


Disable this window from receiving drops.

FXbool FX::FXWindow::isDropEnabled (   )  const


Return true if this window is able to receive drops.

FXbool FX::FXWindow::isDragging (   )  const


Return true if a drag operaion has been initiated from this window.

FXbool FX::FXWindow::beginDrag (  const FXDragType *  types,
FXuint  numtypes
)


Initiate a drag operation with a list of previously registered drag types.

FXbool FX::FXWindow::handleDrag (  FXint  x,
FXint  y,
FXDragAction  action = DRAG_COPY
)


When dragging, inform the drop-target of the new position and the drag action.

FXbool FX::FXWindow::endDrag (  FXbool  drop = TRUE  )


Terminate the drag operation with or without actually dropping the data.

FXbool FX::FXWindow::isDropTarget (   )  const


Return true if this window is the target of a drop.

void FX::FXWindow::setDragRectangle (  FXint  x,
FXint  y,
FXint  w,
FXint  h,
FXbool  wantupdates = TRUE
)  const


When being dragged over, indicate that no further SEL_DND_MOTION messages are required while the cursor is inside the given rectangle.

void FX::FXWindow::clearDragRectangle (   )  const


When being dragged over, indicate we want to receive SEL_DND_MOTION messages every time the cursor moves.

void FX::FXWindow::acceptDrop (  FXDragAction  action = DRAG_ACCEPT  )  const


When being dragged over, indicate acceptance or rejection of the dragged data.

FXDragAction FX::FXWindow::didAccept (   )  const


The target accepted our drop.

FXbool FX::FXWindow::inquireDNDTypes (  FXDNDOrigin  origin,
FXDragType *&  types,
FXuint &  numtypes
)  const


When being dragged over, inquire the drag types which are being offered.

FXbool FX::FXWindow::offeredDNDType (  FXDNDOrigin  origin,
FXDragType  type
)  const


When being dragged over, return true if we are offered the given drag type.

FXDragAction FX::FXWindow::inquireDNDAction (   )  const


When being dragged over, return the drag action.

FXbool FX::FXWindow::setDNDData (  FXDNDOrigin  origin,
FXDragType  type,
FXuchar *  data,
FXuint  size
)  const


Set DND data; the array must be allocated with FXMALLOC and ownership is transferred to the system.

FXbool FX::FXWindow::getDNDData (  FXDNDOrigin  origin,
FXDragType  type,
FXuchar *&  data,
FXuint &  size
)  const


Get DND data; the caller becomes the owner of the array and must free it with FXFREE.

virtual FXbool FX::FXWindow::contains (  FXint  parentx,
FXint  parenty
)  const [virtual]


Return true if window logically contains the given point.

Reimplemented in FX::FXMenuBar, FX::FXMenuButton, FX::FXMenuCascade, FX::FXMenuPane, FX::FXMenuTitle, and FX::FXOptionMenu.

void FX::FXWindow::translateCoordinatesFrom (  FXint &  tox,
FXint &  toy,
const FXWindow *  fromwindow,
FXint  fromx,
FXint  fromy
)  const


Translate coordinates from fromwindow's coordinate space to this window's coordinate space.

void FX::FXWindow::translateCoordinatesTo (  FXint &  tox,
FXint &  toy,
const FXWindow *  towindow,
FXint  fromx,
FXint  fromy
)  const


Translate coordinates from this window's coordinate space to towindow's coordinate space.

virtual void FX::FXWindow::setBackColor (  FXColor  clr  )  [virtual]


Set window background color.

Reimplemented in FX::FXComboBox, and FX::FXListBox.

FXColor FX::FXWindow::getBackColor (   )  const [inline]


Get background color.

Reimplemented in FX::FXComboBox, and FX::FXListBox.

void FX::FXWindow::linkBefore (  FXWindow *  sibling  )


Relink this window before sibling in the window list.

void FX::FXWindow::linkAfter (  FXWindow *  sibling  )


Relink this window after sibling in the window list.

virtual void FX::FXWindow::save (  FXStream &  store  )  const [virtual]


Save window to stream.

Reimplemented from FX::FXDrawable.

Reimplemented in FX::FX4Splitter, FX::FXArrowButton, FX::FXBitmapFrame, FX::FXBitmapView, FX::FXCheckButton, FX::FXColorBar, FX::FXColorDialog, FX::FXColorSelector, FX::FXColorWell, FX::FXColorWheel, FX::FXComboBox, FX::FXDial, FX::FXDirBox, FX::FXDirDialog, FX::FXDirList, FX::FXDirSelector, FX::FXDragCorner, FX::FXDriveBox, FX::FXFileDialog, FX::FXFileList, FX::FXFileSelector, FX::FXFoldingList, FX::FXFontDialog, FX::FXFontSelector, FX::FXFrame, FX::FXGLCanvas, FX::FXGLViewer, FX::FXGradientBar, FX::FXGroupBox, FX::FXHeader, FX::FXIconList, FX::FXImageFrame, FX::FXImageView, FX::FXLabel, FX::FXList, FX::FXListBox, FX::FXMDIChild, FX::FXMDIClient, FX::FXMenuButton, FX::FXMenuCaption, FX::FXMenuCascade, FX::FXMenuCheck, FX::FXMenuCommand, FX::FXMenuRadio, FX::FXMenuSeparator, FX::FXMenuTitle, FX::FXOptionMenu, FX::FXPacker, FX::FXPrintDialog, FX::FXProgressBar, FX::FXRadioButton, FX::FXRealSlider, FX::FXRealSpinner, FX::FXReplaceDialog, FX::FXRuler, FX::FXScrollBar, FX::FXSlider, FX::FXSpinner, FX::FXSplitter, FX::FXSpring, FX::FXStatusBar, FX::FXStatusLine, FX::FXSwitcher, FX::FXTabBar, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToggleButton, FX::FXToolBar, FX::FXToolBarGrip, FX::FXToolBarShell, FX::FXToolBarTab, FX::FXToolTip, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, FX::FXTriStateButton, and FX::FXWizard.

virtual void FX::FXWindow::load (  FXStream &  store  )  [virtual]


Restore window from stream.

Reimplemented from FX::FXDrawable.

Reimplemented in FX::FX4Splitter, FX::FXArrowButton, FX::FXBitmapFrame, FX::FXBitmapView, FX::FXCheckButton, FX::FXColorBar, FX::FXColorDialog, FX::FXColorSelector, FX::FXColorWell, FX::FXColorWheel, FX::FXComboBox, FX::FXDial, FX::FXDirBox, FX::FXDirDialog, FX::FXDirList, FX::FXDirSelector, FX::FXDragCorner, FX::FXDriveBox, FX::FXFileDialog, FX::FXFileList, FX::FXFileSelector, FX::FXFoldingList, FX::FXFontDialog, FX::FXFontSelector, FX::FXFrame, FX::FXGLCanvas, FX::FXGLViewer, FX::FXGradientBar, FX::FXGroupBox, FX::FXHeader, FX::FXIconList, FX::FXImageFrame, FX::FXImageView, FX::FXLabel, FX::FXList, FX::FXListBox, FX::FXMDIChild, FX::FXMDIClient, FX::FXMenuButton, FX::FXMenuCaption, FX::FXMenuCascade, FX::FXMenuCheck, FX::FXMenuCommand, FX::FXMenuRadio, FX::FXMenuSeparator, FX::FXMenuTitle, FX::FXOptionMenu, FX::FXPacker, FX::FXPrintDialog, FX::FXProgressBar, FX::FXRadioButton, FX::FXRealSlider, FX::FXRealSpinner, FX::FXReplaceDialog, FX::FXRuler, FX::FXScrollBar, FX::FXSlider, FX::FXSpinner, FX::FXSplitter, FX::FXSpring, FX::FXStatusBar, FX::FXStatusLine, FX::FXSwitcher, FX::FXTabBar, FX::FXTable, FX::FXText, FX::FXTextField, FX::FXToggleButton, FX::FXToolBar, FX::FXToolBarGrip, FX::FXToolBarShell, FX::FXToolBarTab, FX::FXToolTip, FX::FXTopWindow, FX::FXTreeList, FX::FXTreeListBox, FX::FXTriStateButton, and FX::FXWizard.

Copyright © 1997-2004 Jeroen van der Zijp
