FX::FXHeader Class Reference

Header control may be placed over a table or list to provide a resizable captions above a number of columns. More...

#include <FXHeader.h>

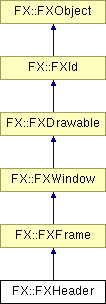

Inheritance diagram for FX::FXHeader:


Public Member Functions
	FXHeader (FXComposite p, FXObject tgt=NULL, FXSelector sel=0, FXuint opts=HEADER_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_PAD, FXint pr=DEFAULT_PAD, FXint pt=DEFAULT_PAD, FXint pb=DEFAULT_PAD)
virtual void	create ()
virtual void	detach ()
virtual void	layout ()
FXint	getNumItems () const
FXint	getTotalSize () const
virtual FXint	getDefaultWidth ()
virtual FXint	getDefaultHeight ()
void	setPosition (FXint p)
FXint	getPosition () const
FXHeaderItem *	getItem (FXint index) const
FXint	setItem (FXint index, FXHeaderItem *item, FXbool notify=FALSE)
FXint	getItemAt (FXint coord) const
FXint	setItem (FXint index, const FXString &text, FXIcon icon=NULL, FXint size=0, void ptr=NULL, FXbool notify=FALSE)
FXint	insertItem (FXint index, FXHeaderItem *item, FXbool notify=FALSE)
FXint	insertItem (FXint index, const FXString &text, FXIcon icon=NULL, FXint size=0, void ptr=NULL, FXbool notify=FALSE)
FXint	appendItem (FXHeaderItem *item, FXbool notify=FALSE)
FXint	appendItem (const FXString &text, FXIcon icon=NULL, FXint size=0, void ptr=NULL, FXbool notify=FALSE)
FXint	prependItem (FXHeaderItem *item, FXbool notify=FALSE)
FXint	prependItem (const FXString &text, FXIcon icon=NULL, FXint size=0, void ptr=NULL, FXbool notify=FALSE)
void	removeItem (FXint index, FXbool notify=FALSE)
void	clearItems (FXbool notify=FALSE)
void	setItemText (FXint index, const FXString &text)
FXString	getItemText (FXint index) const
void	setItemIcon (FXint index, FXIcon *icon)
FXIcon *	getItemIcon (FXint index) const
void	setItemSize (FXint index, FXint size)
FXint	getItemSize (FXint index) const
FXint	getItemOffset (FXint index) const
void	setItemData (FXint index, void *ptr)
void *	getItemData (FXint index) const
void	setArrowDir (FXint index, FXbool dir=MAYBE)
FXbool	getArrowDir (FXint index) const
void	setItemJustify (FXint index, FXuint justify)
FXuint	getItemJustify (FXint index) const
void	setItemIconPosition (FXint index, FXuint mode)
FXuint	getItemIconPosition (FXint index) const
void	setItemPressed (FXint index, FXbool pressed=TRUE)
FXbool	isItemPressed (FXint index) const
void	makeItemVisible (FXint index)
void	updateItem (FXint index) const
void	setFont (FXFont *fnt)
FXFont *	getFont () const
FXColor	getTextColor () const
void	setTextColor (FXColor clr)
void	setHeaderStyle (FXuint style)
FXuint	getHeaderStyle () const
void	setHelpText (const FXString &text)
FXString	getHelpText () const
virtual void	save (FXStream &store) const
virtual void	load (FXStream &store)
virtual	~FXHeader ()

Detailed Description

Header control may be placed over a table or list to provide a resizable captions above a number of columns.

Each caption comprises a label and an optional icon; in addition, an arrow may be shown to indicate whether the items in that column are sorted, and if so, whether they are sorted in increasing or decreasing order. Each caption can be interactively resized. During the resizing, if the HEADER_TRACKING was specified, the header control sends a SEL_CHANGED message to its target, with the message data set to the caption number being resized, of the type FXint. If the HEADER_TRACKING was not specified the SEL_CHANGED message is sent at the end of the resizing operation. Clicking on a caption causes a message of type SEL_COMMAND to be sent to the target, with the message data set to the caption number being clicked. A single click on a split causes a message of type SEL_CLICKED to be sent to the target; a typical response to this message would be to adjust the size of the split to fit the contents displayed underneath it. The contents may be scrolled by calling setPosition().

Constructor & Destructor Documentation

FX::FXHeader::FXHeader ( FXComposite * p,

FXObject * tgt = NULL,

FXSelector sel = 0,

FXuint opts = HEADER_NORMAL,

FXint x = 0,

FXint y = 0,

FXint w = 0,

FXint h = 0,

FXint pl = DEFAULT_PAD,

FXint pr = DEFAULT_PAD,

FXint pt = DEFAULT_PAD,

FXint pb = DEFAULT_PAD

)

Construct new header control.

virtual FX::FXHeader::~FXHeader ( ) [virtual]

Destructor.

Member Function Documentation

virtual void FX::FXHeader::create ( ) [virtual]

Create server-side resources.

Reimplemented from FX::FXWindow.

virtual void FX::FXHeader::detach ( ) [virtual]

Detach server-side resources.

Reimplemented from FX::FXWindow.

virtual void FX::FXHeader::layout ( ) [virtual]

Perform layout.

Reimplemented from FX::FXWindow.

FXint FX::FXHeader::getNumItems ( ) const [inline]

Return number of items.

FXint FX::FXHeader::getTotalSize ( ) const

Return total size of all items.

virtual FXint FX::FXHeader::getDefaultWidth ( ) [virtual]

Return default width.

Reimplemented from FX::FXFrame.

virtual FXint FX::FXHeader::getDefaultHeight ( ) [virtual]

Return default height.

Reimplemented from FX::FXFrame.

void FX::FXHeader::setPosition ( FXint p )

Set the current position.

FXint FX::FXHeader::getPosition ( ) const [inline]

Return the current position.

FXHeaderItem* FX::FXHeader::getItem ( FXint index ) const

Return item at given index.

FXint FX::FXHeader::setItem ( FXint index,

FXHeaderItem * item,

FXbool notify = FALSE

)

Replace the item with a [possibly subclassed] item.

FXint FX::FXHeader::getItemAt ( FXint coord ) const

Return item-index given coordinate offset, or -1 if coordinate is before first item in header, or nitems if coordinate is after last item in header.

FXint FX::FXHeader::setItem ( FXint index,

const FXString & text,

FXIcon * icon = NULL,

FXint size = 0,

void * ptr = NULL,

FXbool notify = FALSE

)

Replace items text, icon, and user-data pointer.

FXint FX::FXHeader::insertItem ( FXint index,

FXHeaderItem * item,

FXbool notify = FALSE

)

Insert a new [possibly subclassed] item at the give index.

FXint FX::FXHeader::insertItem ( FXint index,

const FXString & text,

FXIcon * icon = NULL,

FXint size = 0,

void * ptr = NULL,

FXbool notify = FALSE

)

Insert item at index with given text, icon, and user-data pointer.

FXint FX::FXHeader::appendItem ( FXHeaderItem * item,

FXbool notify = FALSE

)

Append a [possibly subclassed] item to the list.

FXint FX::FXHeader::appendItem ( const FXString & text,

FXIcon * icon = NULL,

FXint size = 0,

void * ptr = NULL,

FXbool notify = FALSE

)

Append new item with given text and optional icon, and user-data pointer.

FXint FX::FXHeader::prependItem ( FXHeaderItem * item,

FXbool notify = FALSE

)

Prepend a [possibly subclassed] item to the list.

FXint FX::FXHeader::prependItem ( const FXString & text,

FXIcon * icon = NULL,

FXint size = 0,

void * ptr = NULL,

FXbool notify = FALSE

)

Prepend new item with given text and optional icon, and user-data pointer.

void FX::FXHeader::removeItem ( FXint index,

FXbool notify = FALSE

)

Remove item at index.

void FX::FXHeader::clearItems ( FXbool notify = FALSE )

Remove all items.

void FX::FXHeader::setItemText ( FXint index,

const FXString & text

)

Change text label for item at index.

FXString FX::FXHeader::getItemText ( FXint index ) const

Get text of item at index.

void FX::FXHeader::setItemIcon ( FXint index,

FXIcon * icon

)

Change icon of item at index.

FXIcon* FX::FXHeader::getItemIcon ( FXint index ) const

Return icon of item at index.

void FX::FXHeader::setItemSize ( FXint index,

FXint size

)

Change size of item at index.

FXint FX::FXHeader::getItemSize ( FXint index ) const

Return size of item at index.

FXint FX::FXHeader::getItemOffset ( FXint index ) const

Compute offset from the left side of item at index.

void FX::FXHeader::setItemData ( FXint index,

void * ptr

)

Change data of item at index.

void* FX::FXHeader::getItemData ( FXint index ) const

Return data of item at index.

void FX::FXHeader::setArrowDir ( FXint index,

FXbool dir = MAYBE

)

Change sort direction (FALSE, TRUE, MAYBE).

FXbool FX::FXHeader::getArrowDir ( FXint index ) const

Return sort direction (FALSE, TRUE, MAYBE).

void FX::FXHeader::setItemJustify ( FXint index,

FXuint justify

)

Change item justification.

FXuint FX::FXHeader::getItemJustify ( FXint index ) const

Return item justification.

void FX::FXHeader::setItemIconPosition ( FXint index,

FXuint mode

)

Change relative position of icon and text of item.

FXuint FX::FXHeader::getItemIconPosition ( FXint index ) const

Return relative icon and text position.

void FX::FXHeader::setItemPressed ( FXint index,

FXbool pressed = TRUE

)

Changed button item's pressed state.

FXbool FX::FXHeader::isItemPressed ( FXint index ) const

Return TRUE if button item is pressed in.

void FX::FXHeader::makeItemVisible ( FXint index )

Scroll to make given item visible.

void FX::FXHeader::updateItem ( FXint index ) const

Repaint header at index.

void FX::FXHeader::setFont ( FXFont * fnt )

Change text font.

FXFont* FX::FXHeader::getFont ( ) const [inline]

return text font

FXColor FX::FXHeader::getTextColor ( ) const [inline]

Return text color.

void FX::FXHeader::setTextColor ( FXColor clr )

Change text color.

void FX::FXHeader::setHeaderStyle ( FXuint style )

Set header style options.

FXuint FX::FXHeader::getHeaderStyle ( ) const

Get header style options.

void FX::FXHeader::setHelpText ( const FXString & text )

Set the status line help text for this header.

FXString FX::FXHeader::getHelpText ( ) const [inline]

Get the status line help text for this header.

virtual void FX::FXHeader::save ( FXStream & store ) const [virtual]

Save header to a stream.

Reimplemented from FX::FXFrame.

virtual void FX::FXHeader::load ( FXStream & store ) [virtual]

Load header from a stream.

Reimplemented from FX::FXFrame.
