FX::FXImage Class Reference

An Image is a rectangular array of pixels. More...

#include <FXImage.h>

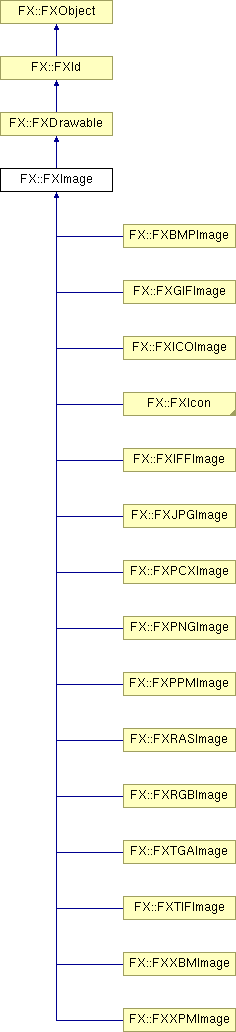

Inheritance diagram for FX::FXImage:

FX::FXDrawable FX::FXId FX::FXObject FX::FXBMPImage FX::FXGIFImage FX::FXICOImage FX::FXIcon FX::FXIFFImage FX::FXJPGImage FX::FXPCXImage FX::FXPNGImage FX::FXPPMImage FX::FXRASImage FX::FXRGBImage FX::FXTGAImage FX::FXTIFImage FX::FXXBMImage FX::FXXPMImage List of all members.

Public Member Functions

 FXImage (FXApp *a, const FXColor *pix=NULL, FXuint opts=0, FXint w=1, FXint h=1)
void setOptions (FXuint opts)
FXuint getOptions () const
virtual void setData (FXColor *pix, FXuint opts=0)
virtual void setData (FXColor *pix, FXuint opts, FXint w, FXint h)
FXColorgetData () const
FXColor getPixel (FXint x, FXint y) const
void setPixel (FXint x, FXint y, FXColor color)
bool hasAlpha () const
virtual void create ()
virtual void detach ()
virtual void destroy ()
virtual void restore ()
virtual void render ()
virtual void release ()
virtual void resize (FXint w, FXint h)
virtual void scale (FXint w, FXint h, FXint quality=0)
virtual void mirror (bool horizontal, bool vertical)
virtual void rotate (FXint degrees)
virtual void crop (FXint x, FXint y, FXint w, FXint h, FXColor color=0)
virtual void fill (FXColor color)
virtual void fade (FXColor color, FXint factor=255)
virtual void xshear (FXint shear, FXColor clr=0)
virtual void yshear (FXint shear, FXColor clr=0)
virtual void hgradient (FXColor left, FXColor right)
virtual void vgradient (FXColor top, FXColor bottom)
virtual void gradient (FXColor topleft, FXColor topright, FXColor bottomleft, FXColor bottomright)
virtual void blend (FXColor color)
virtual void save (FXStream &store) const
virtual void load (FXStream &store)
virtual bool savePixels (FXStream &store) const
virtual bool loadPixels (FXStream &store)
virtual ~FXImage ()

Friends

class FXDC
class FXDCWindow

Detailed Description

An Image is a rectangular array of pixels.

It supports two representations of these pixels: a client-side pixel buffer which is stored as an array of FXColor, and a server-side pixmap which is stored in an organization directly compatible with the screen, for fast drawing onto the device. The server-side representation is not directly accessible from the current process as it lives in the process of the X Server or GDI.

See also:


Constructor & Destructor Documentation

FX::FXImage::FXImage FXApp a,
const FXColor pix = NULL,
FXuint  opts = 0,
FXint  w = 1,
FXint  h = 1


Create an image.

If a client-side pixel buffer has been specified, the image does not own the pixel buffer unless the IMAGE_OWNED flag is set. If the IMAGE_OWNED flag is set but a NULL pixel buffer is passed, a pixel buffer will be automatically created and will be owned by the image. The flags IMAGE_SHMI and IMAGE_SHMP may be specified for large images to instruct render() to use shared memory to communicate with the server.

virtual FX::FXImage::~FXImage  )  [virtual]


Destructor.


Member Function Documentation

void FX::FXImage::setOptions FXuint  opts  )


Change options.

FXuint FX::FXImage::getOptions  )  const [inline]


To get to the option flags.

virtual void FX::FXImage::setData FXColor pix,
FXuint  opts = 0
[virtual]


Populate the image with new pixel data of the same size; it will assume ownership of the pixel data if image IMAGE_OWNED option is passed.

The server-side representation of the image, if it exists, is not updated. This can be done by calling render().

virtual void FX::FXImage::setData FXColor pix,
FXuint  opts,
FXint  w,
FXint  h
[virtual]


Populate the image with new pixel data of a new size; it will assume ownership of the pixel data if image IMAGE_OWNED option is passed.

The size of the server- side representation of the image, if it exists, is adjusted but the contents are not updated yet. This can be done by calling render().

FXColor* FX::FXImage::getData  )  const [inline]


Return pointer to the pixel data of the image.

FXColor FX::FXImage::getPixel FXint  x,
FXint  y
const [inline]


Get pixel at x,y.

void FX::FXImage::setPixel FXint  x,
FXint  y,
FXColor  color
[inline]


Change pixel at x,y.

bool FX::FXImage::hasAlpha  )  const


Scan the image and return false if fully opaque.

virtual void FX::FXImage::create  )  [virtual]


Create the server side pixmap, then call render() to fill it with the pixel data from the client-side buffer.

After the server-side image has been created, the client-side pixel buffer will be deleted unless IMAGE_KEEP has been specified. If the pixel buffer is not owned, i.e. the flag IMAGE_OWNED is not set, the pixel buffer will not be deleted, however the pixel buffer will be set to NULL.

Reimplemented from FX::FXId.

Reimplemented in FX::FXIcon.

virtual void FX::FXImage::detach  )  [virtual]


Detach the server side pixmap from the Image.

Afterwards, the Image is left as if it never had a server-side resources.

Reimplemented from FX::FXId.

Reimplemented in FX::FXIcon.

virtual void FX::FXImage::destroy  )  [virtual]


Destroy the server-side pixmap.

The client-side pixel buffer is not affected.

Reimplemented from FX::FXId.

Reimplemented in FX::FXIcon.

virtual void FX::FXImage::restore  )  [virtual]


Retrieves pixels from the server-side image.

For example, to make screen snapshots, or to retrieve an image after it has been drawn into by various means.

virtual void FX::FXImage::render  )  [virtual]


Render the server-side representation of the image from client-side pixels.

Normally, IMAGE_DITHER is used which causes the server-side representation to be rendered using a 16x16 ordered dither if necessary; however if IMAGE_NEAREST is used a faster (but uglier-looking), nearest neighbor algorithm is used.

Reimplemented in FX::FXIcon.

virtual void FX::FXImage::release  )  [virtual]


Release the client-side pixels buffer, free it if it was owned.

If it is not owned, the image just forgets about the buffer.

virtual void FX::FXImage::resize FXint  w,
FXint  h
[virtual]


Resize both client-side and server-side representations (if any) to the given width and height.

The new representations typically contain garbage after this operation and need to be re-filled.

Reimplemented from FX::FXDrawable.

Reimplemented in FX::FXIcon.

virtual void FX::FXImage::scale FXint  w,
FXint  h,
FXint  quality = 0
[virtual]


Rescale pixels image to the specified width and height; this calls resize() to adjust the client and server side representations.

virtual void FX::FXImage::mirror bool  horizontal,
bool  vertical
[virtual]


Mirror image horizontally and/or vertically.

virtual void FX::FXImage::rotate FXint  degrees  )  [virtual]


Rotate image by degrees ccw; this calls resize() to adjust the client and server side representations if necessary.

virtual void FX::FXImage::crop FXint  x,
FXint  y,
FXint  w,
FXint  h,
FXColor  color = 0
[virtual]


Crop image to given rectangle; this calls resize() to adjust the client and server side representations.

The new image may be smaller or larger than the old one; blank areas are filled with color. There must be at least one pixel of overlap between the old and the new image.

virtual void FX::FXImage::fill FXColor  color  )  [virtual]


Fill image with uniform color.

virtual void FX::FXImage::fade FXColor  color,
FXint  factor = 255
[virtual]


Fade image to uniform color.

virtual void FX::FXImage::xshear FXint  shear,
FXColor  clr = 0
[virtual]


Shear image horizontally; the number of pixels is equal to the shear parameter times 256.

The area outside the image is filled with transparent black, unless another color is specified.

virtual void FX::FXImage::yshear FXint  shear,
FXColor  clr = 0
[virtual]


Shear image vertically; the number of pixels is equal to the shear parameter times 256.

The area outside the image is filled with transparent black, unless another color is specified.

virtual void FX::FXImage::hgradient FXColor  left,
FXColor  right
[virtual]


Fill horizontal gradient.

virtual void FX::FXImage::vgradient FXColor  top,
FXColor  bottom
[virtual]


Fill vertical gradient.

virtual void FX::FXImage::gradient FXColor  topleft,
FXColor  topright,
FXColor  bottomleft,
FXColor  bottomright
[virtual]


Fill with gradient.

virtual void FX::FXImage::blend FXColor  color  )  [virtual]


Blend image over uniform color.

virtual void FX::FXImage::save FXStream store  )  const [virtual]


Save object to stream.

Reimplemented from FX::FXDrawable.

virtual void FX::FXImage::load FXStream store  )  [virtual]


Load object from stream.

Reimplemented from FX::FXDrawable.

virtual bool FX::FXImage::savePixels FXStream store  )  const [virtual]


Save pixel data only.

Reimplemented in FX::FXBMPIcon, FX::FXBMPImage, FX::FXGIFIcon, FX::FXGIFImage, FX::FXICOIcon, FX::FXICOImage, FX::FXIFFIcon, FX::FXIFFImage, FX::FXJPGIcon, FX::FXJPGImage, FX::FXPCXIcon, FX::FXPCXImage, FX::FXPNGIcon, FX::FXPNGImage, FX::FXPPMIcon, FX::FXPPMImage, FX::FXRASIcon, FX::FXRASImage, FX::FXRGBIcon, FX::FXRGBImage, FX::FXTGAIcon, FX::FXTGAImage, FX::FXTIFIcon, FX::FXTIFImage, FX::FXXBMIcon, FX::FXXBMImage, FX::FXXPMIcon, and FX::FXXPMImage.

virtual bool FX::FXImage::loadPixels FXStream store  )  [virtual]


Load pixel data only.

Reimplemented in FX::FXBMPIcon, FX::FXBMPImage, FX::FXGIFIcon, FX::FXGIFImage, FX::FXICOIcon, FX::FXICOImage, FX::FXIFFIcon, FX::FXIFFImage, FX::FXJPGIcon, FX::FXJPGImage, FX::FXPCXIcon, FX::FXPCXImage, FX::FXPNGIcon, FX::FXPNGImage, FX::FXPPMIcon, FX::FXPPMImage, FX::FXRASIcon, FX::FXRASImage, FX::FXRGBIcon, FX::FXRGBImage, FX::FXTGAIcon, FX::FXTGAImage, FX::FXTIFIcon, FX::FXTIFImage, FX::FXXBMIcon, FX::FXXBMImage, FX::FXXPMIcon, and FX::FXXPMImage.


Friends And Related Function Documentation

friend class FXDC [friend]


Reimplemented from FX::FXDrawable.

Reimplemented in FX::FXIcon.

friend class FXDCWindow [friend]


Reimplemented from FX::FXDrawable.

Reimplemented in FX::FXIcon.
