FX::FXTabBar

FX::FXTabBar Class Reference

The tab bar layout manager arranges tab items side by side, and raises the active tab item above the neighboring tab items. More...

#include <FXTabBar.h>

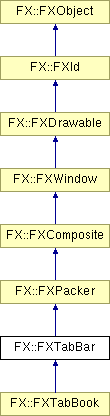

Inheritance diagram for FX::FXTabBar:

FX::FXPacker FX::FXComposite FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject FX::FXTabBook List of all members.

Public Types

enum  {
  ID_OPEN_ITEM = FXPacker::ID_LAST,
  ID_OPEN_FIRST,
  ID_OPEN_SECOND,
  ID_OPEN_THIRD,
  ID_OPEN_FOURTH,
  ID_OPEN_FIFTH,
  ID_OPEN_SIXTH,
  ID_OPEN_SEVENTH,
  ID_OPEN_EIGHTH,
  ID_OPEN_NINETH,
  ID_OPEN_TENTH,
  ID_OPEN_LAST = ID_OPEN_FIRST+100,
  ID_LAST
}

Public Member Functions

 FXTabBar (FXComposite *p, FXObject *tgt=NULL, FXSelector sel=0, FXuint opts=TABBOOK_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=DEFAULT_SPACING, FXint pr=DEFAULT_SPACING, FXint pt=DEFAULT_SPACING, FXint pb=DEFAULT_SPACING)
virtual FXint getDefaultWidth ()
virtual FXint getDefaultHeight ()
virtual void layout ()
virtual void setCurrent (FXint panel, FXbool notify=FALSE)
FXint getCurrent () const
FXuint getTabStyle () const
void setTabStyle (FXuint style)
virtual void save (FXStream &store) const
virtual void load (FXStream &store)

Detailed Description

The tab bar layout manager arranges tab items side by side, and raises the active tab item above the neighboring tab items.

In a the horizontal arrangement, the tab bar can have the tab items on the top or on the bottom. In the vertical arrangement, the tabs can be on the left or on the right. When one of the tab items is pressed, the tab bar's setCurrent() is called with notify=TRUE. Thus causes the tab bar to send a SEL_COMMAND message to its target.

See also:

Member Enumeration Documentation

anonymous enum


Enumeration values:
ID_OPEN_ITEM  Sent from one of the FXTabItems.
ID_OPEN_FIRST  Switch to panel ID_OPEN_FIRST+i.
ID_OPEN_SECOND
ID_OPEN_THIRD
ID_OPEN_FOURTH
ID_OPEN_FIFTH
ID_OPEN_SIXTH
ID_OPEN_SEVENTH
ID_OPEN_EIGHTH
ID_OPEN_NINETH
ID_OPEN_TENTH
ID_OPEN_LAST
ID_LAST

Constructor & Destructor Documentation

FX::FXTabBar::FXTabBar (  FXComposite *  p,
FXObject *  tgt = NULL,
FXSelector  sel = 0,
FXuint  opts = TABBOOK_NORMAL,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = DEFAULT_SPACING,
FXint  pr = DEFAULT_SPACING,
FXint  pt = DEFAULT_SPACING,
FXint  pb = DEFAULT_SPACING
)


Construct a tab bar.

Member Function Documentation

virtual FXint FX::FXTabBar::getDefaultWidth (   )  [virtual]


Return default width.

Reimplemented from FX::FXPacker.

Reimplemented in FX::FXTabBook.

virtual FXint FX::FXTabBar::getDefaultHeight (   )  [virtual]


Return default height.

Reimplemented from FX::FXPacker.

Reimplemented in FX::FXTabBook.

virtual void FX::FXTabBar::layout (   )  [virtual]


Perform layout.

Reimplemented from FX::FXPacker.

Reimplemented in FX::FXTabBook.

virtual void FX::FXTabBar::setCurrent (  FXint  panel,
FXbool  notify = FALSE
)  [virtual]


Change currently active tab item; this raises the active tab item slightly above the neighboring tab items.

If notify=TRUE then the tab bar will also send a SEL_COMMAND message to its target.

FXint FX::FXTabBar::getCurrent (   )  const [inline]


Return the currently active tab item.

FXuint FX::FXTabBar::getTabStyle (   )  const


Return tab bar style.

void FX::FXTabBar::setTabStyle (  FXuint  style  )


Change tab tab style.

virtual void FX::FXTabBar::save (  FXStream &  store  )  const [virtual]


Save to stream.

Reimplemented from FX::FXPacker.

virtual void FX::FXTabBar::load (  FXStream &  store  )  [virtual]


Load from stream.

Reimplemented from FX::FXPacker.
