FX::FXDirList Class Reference

A Directory List widget provides a tree-structured view of the file system. More...

#include <FXDirList.h>

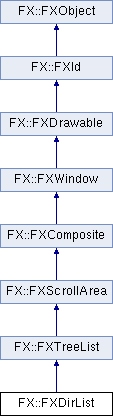

Inheritance diagram for FX::FXDirList:

Public Types
enum	{   ID_REFRESHTIMER =FXTreeList::ID_LAST, ID_DROPASK, ID_DROPCOPY, ID_DROPMOVE,   ID_DROPLINK, ID_SHOW_FILES, ID_HIDE_FILES, ID_TOGGLE_FILES,   ID_SHOW_HIDDEN, ID_HIDE_HIDDEN, ID_TOGGLE_HIDDEN, ID_SET_PATTERN,   ID_SORT_REVERSE, ID_SORT_CASE, ID_REFRESH, ID_DELETE_SEL,   ID_LAST }
Public Types inherited from FX::FXTreeList
enum	{ ID_LOOKUPTIMER =FXScrollArea::ID_LAST, ID_LAST }
Public Types inherited from FX::FXScrollArea
enum	{ ID_AUTOSCROLL =FXComposite::ID_LAST, ID_VSCROLLED, ID_HSCROLLED, ID_LAST }
Public Types inherited from FX::FXWindow
enum	WindowClass {   ClassNormal, ClassGraphic, ClassSpecial, ClassRoot,   ClassShell, ClassPopup, ClassToolTip, ClassMain,   ClassDialog, ClassToolBar, ClassSplash, ClassNotify,   ClassPanel, ClassDesktop }
	Window classes. More...
enum	{   ID_NONE, ID_HIDE, ID_SHOW, ID_TOGGLESHOWN,   ID_LOWER, ID_RAISE, ID_DELETE, ID_DISABLE,   ID_ENABLE, ID_TOGGLEENABLED, ID_UNCHECK, ID_CHECK,   ID_UNKNOWN, ID_UPDATE, ID_TIPTIMER, ID_SETVALUE,   ID_SETINTVALUE, ID_SETLONGVALUE, ID_SETREALVALUE, ID_SETSTRINGVALUE,   ID_SETICONVALUE, ID_SETINTRANGE, ID_SETREALRANGE, ID_GETINTVALUE,   ID_GETLONGVALUE, ID_GETREALVALUE, ID_GETSTRINGVALUE, ID_GETICONVALUE,   ID_GETINTRANGE, ID_GETREALRANGE, ID_SETHELPSTRING, ID_GETHELPSTRING,   ID_SETTIPSTRING, ID_GETTIPSTRING, ID_QUERY_MENU, ID_HOTKEY,   ID_ACCEL, ID_UNPOST, ID_POST, ID_MDI_TILEHORIZONTAL,   ID_MDI_TILEVERTICAL, ID_MDI_CASCADE, ID_MDI_MAXIMIZE, ID_MDI_MINIMIZE,   ID_MDI_RESTORE, ID_MDI_CLOSE, ID_MDI_WINDOW, ID_MDI_MENUWINDOW,   ID_MDI_MENUMINIMIZE, ID_MDI_MENURESTORE, ID_MDI_MENUCLOSE, ID_MDI_NEXT,   ID_MDI_PREV, ID_LAST }

Public Member Functions
long	onRefreshTimer (FXObject *, FXSelector, void *)
long	onBeginDrag (FXObject *, FXSelector, void *)
long	onEndDrag (FXObject *, FXSelector, void *)
long	onDragged (FXObject *, FXSelector, void *)
long	onDNDEnter (FXObject *, FXSelector, void *)
long	onDNDLeave (FXObject *, FXSelector, void *)
long	onDNDMotion (FXObject *, FXSelector, void *)
long	onDNDDrop (FXObject *, FXSelector, void *)
long	onDNDRequest (FXObject *, FXSelector, void *)
long	onCmdSetValue (FXObject *, FXSelector, void *)
long	onCmdSetStringValue (FXObject *, FXSelector, void *)
long	onCmdGetStringValue (FXObject *, FXSelector, void *)
long	onCmdToggleHidden (FXObject *, FXSelector, void *)
long	onUpdToggleHidden (FXObject *, FXSelector, void *)
long	onCmdShowHidden (FXObject *, FXSelector, void *)
long	onUpdShowHidden (FXObject *, FXSelector, void *)
long	onCmdHideHidden (FXObject *, FXSelector, void *)
long	onUpdHideHidden (FXObject *, FXSelector, void *)
long	onCmdToggleFiles (FXObject *, FXSelector, void *)
long	onUpdToggleFiles (FXObject *, FXSelector, void *)
long	onCmdShowFiles (FXObject *, FXSelector, void *)
long	onUpdShowFiles (FXObject *, FXSelector, void *)
long	onCmdHideFiles (FXObject *, FXSelector, void *)
long	onUpdHideFiles (FXObject *, FXSelector, void *)
long	onCmdSetPattern (FXObject *, FXSelector, void *)
long	onUpdSetPattern (FXObject *, FXSelector, void *)
long	onCmdSortReverse (FXObject *, FXSelector, void *)
long	onUpdSortReverse (FXObject *, FXSelector, void *)
long	onCmdSortCase (FXObject *, FXSelector, void *)
long	onUpdSortCase (FXObject *, FXSelector, void *)
long	onCmdRefresh (FXObject *, FXSelector, void *)
long	onUpdHaveSel (FXObject *, FXSelector, void *)
long	onCmdDeleteSel (FXObject *, FXSelector, void *)
long	onCmdDropAsk (FXObject *, FXSelector, void *)
long	onCmdDropCopy (FXObject *, FXSelector, void *)
long	onCmdDropMove (FXObject *, FXSelector, void *)
long	onCmdDropLink (FXObject *, FXSelector, void *)
	FXDirList (FXComposite *p, FXObject *tgt=nullptr, FXSelector sel=0, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Construct a directory list.
virtual void	create ()
	Create server-side resources.
virtual void	detach ()
	Detach server-side resources.
virtual void	destroy ()
	Destroy server-side resources.
FXbool	setCurrentFile (const FXString &file, FXbool notify=false)
	Set current file; return true if success.
FXString	getCurrentFile () const
	Return current file.
FXbool	setDirectory (const FXString &path, FXbool notify=false)
	Set current directory; return true if success.
FXString	getDirectory () const
	Return current directory.
FXString	getItemPathname (const FXTreeItem *item) const
	Return absolute pathname of item.
FXTreeItem *	getPathnameItem (const FXString &path) const
	Return the (closest) item from the absolute pathname.
FXbool	isItemFile (const FXTreeItem *item) const
	Return true if item is a file.
FXbool	isItemDirectory (const FXTreeItem *item) const
	Return true if item is a directory.
FXbool	isItemExecutable (const FXTreeItem *item) const
	Return true if item is executable.
FXbool	isItemSymlink (const FXTreeItem *item) const
	Return true if this is a symbolic link item.
FXFileAssoc *	getItemAssoc (const FXTreeItem *item) const
	Return file association of item.
FXlong	getItemSize (const FXTreeItem *item) const
	Return the file size for this item.
FXTime	getItemDate (const FXTreeItem *item) const
	Return the date for this item, in nanoseconds.
FXuint	getItemMode (const FXTreeItem *item) const
	Return the mode bits for this item.
virtual FXbool	collapseTree (FXTreeItem *tree, FXbool notify=false)
	Collapse tree.
virtual FXbool	expandTree (FXTreeItem *tree, FXbool notify=false)
	Expand tree.
FXbool	selectMatching (const FXString &ptrn="*", FXuint mode=FXPath::PathName|FXPath::NoEscape, FXbool notify=false)
	Change wildcard matching pattern.
void	setPattern (const FXString &ptrn="*", FXbool notify=false)
	Change wildcard matching pattern.
FXString	getPattern () const
	Return wildcard pattern.
void	setMatchMode (FXuint mode=FXPath::PathName|FXPath::NoEscape, FXbool notify=false)
	Change wildcard matching mode (see FXPath)
FXuint	getMatchMode () const
	Return wildcard matching mode.
void	showFiles (FXbool flag, FXbool notify=false)
	Show or hide normal files.
FXbool	showFiles () const
	Return true if showing files as well as directories.
void	showHiddenFiles (FXbool flag, FXbool notify=false)
	Show or hide hidden files and directories.
FXbool	showHiddenFiles () const
	Return true if showing hidden files and directories.
void	setAssociations (FXFileAssociations *assoc, FXbool owned=false, FXbool notify=false)
	Change file associations; delete the old one unless it was shared.
FXFileAssociations *	getAssociations () const
	Return file associations.
void	setDraggableFiles (FXbool flag, FXbool notify=false)
	Set draggable files.
FXbool	getDraggableFiles () const
	Are files draggable.
virtual void	save (FXStream &store) const
	Save to stream.
virtual void	load (FXStream &store)
	Load from stream.
virtual	~FXDirList ()
	Destructor.
Public Member Functions inherited from FX::FXTreeList
long	onPaint (FXObject *, FXSelector, void *)
long	onEnter (FXObject *, FXSelector, void *)
long	onLeave (FXObject *, FXSelector, void *)
long	onUngrabbed (FXObject *, FXSelector, void *)
long	onMotion (FXObject *, FXSelector, void *)
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onLeftBtnPress (FXObject *, FXSelector, void *)
long	onLeftBtnRelease (FXObject *, FXSelector, void *)
long	onRightBtnPress (FXObject *, FXSelector, void *)
long	onRightBtnRelease (FXObject *, FXSelector, void *)
long	onQueryTip (FXObject *, FXSelector, void *)
long	onQueryHelp (FXObject *, FXSelector, void *)
long	onTipTimer (FXObject *, FXSelector, void *)
long	onFocusIn (FXObject *, FXSelector, void *)
long	onFocusOut (FXObject *, FXSelector, void *)
long	onAutoScroll (FXObject *, FXSelector, void *)
long	onClicked (FXObject *, FXSelector, void *)
long	onDoubleClicked (FXObject *, FXSelector, void *)
long	onTripleClicked (FXObject *, FXSelector, void *)
long	onCommand (FXObject *, FXSelector, void *)
long	onLookupTimer (FXObject *, FXSelector, void *)
	FXTreeList (FXComposite *p, FXObject *tgt=nullptr, FXSelector sel=0, FXuint opts=TREELIST_NORMAL, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Construct a new, initially empty tree list.
virtual void	layout ()
	Perform layout.
virtual FXint	getDefaultWidth ()
	Return default width.
virtual FXint	getDefaultHeight ()
	Return default height.
virtual FXint	getContentWidth ()
	Compute and return content width.
virtual FXint	getContentHeight ()
	Return content height.
virtual void	recalc ()
	Recalculate layout.
virtual FXbool	canFocus () const
	Tree list can receive focus.
virtual void	setFocus ()
	Move the focus to this window.
virtual void	killFocus ()
	Remove the focus from this window.
FXint	getNumItems () const
	Return number of items.
FXint	getNumVisible () const
	Return number of visible items.
void	setNumVisible (FXint nvis)
	Change number of visible items.
FXTreeItem *	getFirstItem () const
	Return first root item.
FXTreeItem *	getLastItem () const
	Return last root item.
FXint	fillItems (FXTreeItem *father, const FXchar *const *strings, FXIcon *oi=nullptr, FXIcon *ci=nullptr, FXptr ptr=nullptr, FXbool notify=false)
	Fill tree list by appending items from array of strings.
FXint	fillItems (FXTreeItem *father, const FXString *strings, FXIcon *oi=nullptr, FXIcon *ci=nullptr, FXptr ptr=nullptr, FXbool notify=false)
	Fill tree list by appending items from array of strings.
FXint	fillItems (FXTreeItem *father, const FXString &strings, FXIcon *oi=nullptr, FXIcon *ci=nullptr, FXptr ptr=nullptr, FXbool notify=false)
	Fill tree list by appending items from newline separated strings.
FXTreeItem *	setItem (FXTreeItem *orig, FXTreeItem *item, FXbool notify=false)
	Replace the original item orig with new [possibly subclassed] item.
FXTreeItem *	insertItem (FXTreeItem *other, FXTreeItem *father, FXTreeItem *item, FXbool notify=false)
	Insert [possibly subclassed] item under father before other item.
FXTreeItem *	insertItem (FXTreeItem *other, FXTreeItem *father, const FXString &text, FXIcon *oi=nullptr, FXIcon *ci=nullptr, FXptr ptr=nullptr, FXbool notify=false)
	Insert item with given text and optional icons, and user-data pointer under father before other item.
FXTreeItem *	appendItem (FXTreeItem *father, FXTreeItem *item, FXbool notify=false)
	Append [possibly subclassed] item as last child of father.
FXTreeItem *	appendItem (FXTreeItem *father, const FXString &text, FXIcon *oi=nullptr, FXIcon *ci=nullptr, FXptr ptr=nullptr, FXbool notify=false)
	Append item with given text and optional icons, and user-data pointer as last child of father.
FXTreeItem *	prependItem (FXTreeItem *father, FXTreeItem *item, FXbool notify=false)
	Prepend [possibly subclassed] item as first child of father.
FXTreeItem *	prependItem (FXTreeItem *father, const FXString &text, FXIcon *oi=nullptr, FXIcon *ci=nullptr, FXptr ptr=nullptr, FXbool notify=false)
	Prepend item with given text and optional icons, and user-data pointer as first child of father.
FXTreeItem *	moveItem (FXTreeItem *other, FXTreeItem *father, FXTreeItem *item)
	Move item under father before other item.
FXTreeItem *	extractItem (FXTreeItem *item, FXbool notify=false)
	Extract item.
void	removeItem (FXTreeItem *item, FXbool notify=false)
	Remove item.
void	removeItems (FXTreeItem *fm, FXTreeItem *to, FXbool notify=false)
	Remove items in range [fm, to] inclusively.
void	clearItems (FXbool notify=false)
	Remove all items from list.
FXint	getItemWidth (const FXTreeItem *item) const
	Return item width.
FXint	getItemHeight (const FXTreeItem *item) const
	Return item height.
virtual FXTreeItem *	getItemAt (FXint x, FXint y) const
	Get item at x,y, if any.
FXint	hitItem (const FXTreeItem *item, FXint x, FXint y) const
	Return item hit code: 0 outside, 1 icon, 2 text, 3 box.
virtual void	makeItemVisible (FXTreeItem *item)
	Scroll to make item visible.
FXTreeItem *	findItem (const FXString &string, FXTreeItem *start=nullptr, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
	Search items by name, beginning from item start. More...
FXTreeItem *	findItemByData (FXptr ptr, FXTreeItem *start=nullptr, FXuint flags=SEARCH_FORWARD|SEARCH_WRAP) const
	Search items by associated user data, beginning from item start. More...
void	setItemText (FXTreeItem *item, const FXString &text)
	Change item's text.
FXString	getItemText (const FXTreeItem *item) const
	Return item's text.
void	setItemOpenIcon (FXTreeItem *item, FXIcon *icon, FXbool owned=false)
	Change item's open icon.
FXIcon *	getItemOpenIcon (const FXTreeItem *item) const
	Return item's open icon, deleting the old icon if it was owned.
void	setItemClosedIcon (FXTreeItem *item, FXIcon *icon, FXbool owned=false)
	Chance item's closed icon, deleting the old icon if it was owned.
FXIcon *	getItemClosedIcon (const FXTreeItem *item) const
	Return item's closed icon.
void	setItemData (FXTreeItem *item, void *ptr) const
	Change item user-data pointer.
void *	getItemData (const FXTreeItem *item) const
	Return item user-data pointer.
FXbool	isItemSelected (const FXTreeItem *item) const
	Return true if item is selected.
FXbool	isItemCurrent (const FXTreeItem *item) const
	Return true if item is current.
FXbool	isItemVisible (const FXTreeItem *item) const
	Return true if item is visible.
FXbool	isItemOpened (const FXTreeItem *item) const
	Return true if item opened.
FXbool	isItemExpanded (const FXTreeItem *item) const
	Return true if item expanded.
FXbool	isItemLeaf (const FXTreeItem *item) const
	Return true if item is a leaf-item, i.e. has no children.
FXbool	isItemEnabled (const FXTreeItem *item) const
	Return true if item is enabled.
void	updateItem (FXTreeItem *item) const
	Repaint item.
virtual FXbool	enableItem (FXTreeItem *item)
	Enable item.
virtual FXbool	disableItem (FXTreeItem *item)
	Disable item.
virtual FXbool	selectItem (FXTreeItem *item, FXbool notify=false)
	Select item.
virtual FXbool	deselectItem (FXTreeItem *item, FXbool notify=false)
	Deselect item.
virtual FXbool	toggleItem (FXTreeItem *item, FXbool notify=false)
	Toggle item selection.
virtual FXbool	extendSelection (FXTreeItem *item, FXbool notify=false)
	Extend selection from anchor item to item.
virtual FXbool	selectAll (FXbool notify=false)
	Select all items.
virtual FXbool	killSelection (FXbool notify=false)
	Deselect all items.
virtual FXbool	openItem (FXTreeItem *item, FXbool notify=false)
	Open item.
virtual FXbool	closeItem (FXTreeItem *item, FXbool notify=false)
	Close item.
virtual void	setCurrentItem (FXTreeItem *item, FXbool notify=false)
	Change current item.
FXTreeItem *	getCurrentItem () const
	Return current item, if any.
void	setAnchorItem (FXTreeItem *item)
	Change anchor item.
FXTreeItem *	getAnchorItem () const
	Return anchor item, if any.
void	sortItems ()
	Sort all items recursively.
void	sortRootItems ()
	Sort root items.
void	sortChildItems (FXTreeItem *item)
	Sort children of item.
FXTreeListSortFunc	getSortFunc () const
	Return sort function.
void	setSortFunc (FXTreeListSortFunc func)
	Change sort function.
void	setFont (FXFont *fnt)
	Change text font.
FXFont *	getFont () const
	Return text font.
void	setIndent (FXint in)
	Change parent-child indent amount.
FXint	getIndent () const
	Return parent-child indent amount.
FXColor	getTextColor () const
	Return normal text color.
void	setTextColor (FXColor clr)
	Change normal text color.
FXColor	getSelBackColor () const
	Return selected text background.
void	setSelBackColor (FXColor clr)
	Change selected text background.
FXColor	getSelTextColor () const
	Return selected text color.
void	setSelTextColor (FXColor clr)
	Change selected text color.
FXColor	getLineColor () const
	Return line color.
void	setLineColor (FXColor clr)
	Change line color.
FXuint	getListStyle () const
	Return list style.
void	setListStyle (FXuint style)
	Change list style.
void	setHelpText (const FXString &text)
	Set the status line help text for this list.
const FXString &	getHelpText () const
	Get the status line help text for this list.
virtual	~FXTreeList ()
	Destructor.
Public Member Functions inherited from FX::FXScrollArea
long	onMouseWheel (FXObject *, FXSelector, void *)
long	onHScrollerChanged (FXObject *, FXSelector, void *)
long	onVScrollerChanged (FXObject *, FXSelector, void *)
long	onHScrollerDragged (FXObject *, FXSelector, void *)
long	onVScrollerDragged (FXObject *, FXSelector, void *)
long	onAutoScroll (FXObject *, FXSelector, void *)
void	setPosition (FXint x, FXint y)
	Set the current position.
void	getPosition (FXint &x, FXint &y) const
	Get the current position.
FXint	getContentX () const
	Return content area x position.
FXint	getContentY () const
	Return content area y position.
virtual FXint	getVisibleX () const
	Return visible scroll-area x position.
virtual FXint	getVisibleY () const
	Return visible scroll-area y position.
virtual FXint	getVisibleWidth () const
	Return visible scroll-area width.
virtual FXint	getVisibleHeight () const
	Return visible scroll-area height.
FXbool	isHorizontalScrollable () const
	Return true if horizontally scrollable.
FXbool	isVerticalScrollable () const
	Return true if vertically scrollable.
void	setScrollStyle (FXuint style)
	Change scroll style.
FXuint	getScrollStyle () const
	Return scroll style.
FXScrollBar *	horizontalScrollBar () const
	Return a pointer to the horizontal scrollbar.
FXScrollBar *	verticalScrollBar () const
	Return a pointer to the vertical scrollbar.
virtual	~FXScrollArea ()
	Destructor.
Public Member Functions inherited from FX::FXComposite
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onFocusNext (FXObject *, FXSelector, void *)
long	onFocusPrev (FXObject *, FXSelector, void *)
long	onCmdUpdate (FXObject *, FXSelector, void *)
	FXComposite (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Constructor.
FXint	maxChildWidth () const
	Return the width of the widest child window.
FXint	maxChildHeight () const
	Return the height of the tallest child window.
virtual FXbool	isComposite () const
	Overrides this virtual function to return true.
virtual	~FXComposite ()
	Destructor.
Public Member Functions inherited from FX::FXWindow
long	onPaint (FXObject *, FXSelector, void *)
long	onMap (FXObject *, FXSelector, void *)
long	onUnmap (FXObject *, FXSelector, void *)
long	onConfigure (FXObject *, FXSelector, void *)
long	onUpdate (FXObject *, FXSelector, void *)
long	onMotion (FXObject *, FXSelector, void *)
long	onMouseWheel (FXObject *, FXSelector, void *)
long	onEnter (FXObject *, FXSelector, void *)
long	onLeave (FXObject *, FXSelector, void *)
long	onLeftBtnPress (FXObject *, FXSelector, void *)
long	onLeftBtnRelease (FXObject *, FXSelector, void *)
long	onMiddleBtnPress (FXObject *, FXSelector, void *)
long	onMiddleBtnRelease (FXObject *, FXSelector, void *)
long	onRightBtnPress (FXObject *, FXSelector, void *)
long	onRightBtnRelease (FXObject *, FXSelector, void *)
long	onSpaceBallMotion (FXObject *, FXSelector, void *)
long	onSpaceBallButtonPress (FXObject *, FXSelector, void *)
long	onSpaceBallButtonRelease (FXObject *, FXSelector, void *)
long	onBeginDrag (FXObject *, FXSelector, void *)
long	onEndDrag (FXObject *, FXSelector, void *)
long	onDragged (FXObject *, FXSelector, void *)
long	onKeyPress (FXObject *, FXSelector, void *)
long	onKeyRelease (FXObject *, FXSelector, void *)
long	onUngrabbed (FXObject *, FXSelector, void *)
long	onDestroy (FXObject *, FXSelector, void *)
long	onFocusSelf (FXObject *, FXSelector, void *)
long	onFocusIn (FXObject *, FXSelector, void *)
long	onFocusOut (FXObject *, FXSelector, void *)
long	onSelectionLost (FXObject *, FXSelector, void *)
long	onSelectionGained (FXObject *, FXSelector, void *)
long	onSelectionRequest (FXObject *, FXSelector, void *)
long	onClipboardLost (FXObject *, FXSelector, void *)
long	onClipboardGained (FXObject *, FXSelector, void *)
long	onClipboardRequest (FXObject *, FXSelector, void *)
long	onDNDEnter (FXObject *, FXSelector, void *)
long	onDNDLeave (FXObject *, FXSelector, void *)
long	onDNDMotion (FXObject *, FXSelector, void *)
long	onDNDDrop (FXObject *, FXSelector, void *)
long	onDNDRequest (FXObject *, FXSelector, void *)
long	onQueryHelp (FXObject *, FXSelector, void *)
long	onQueryTip (FXObject *, FXSelector, void *)
long	onCmdShow (FXObject *, FXSelector, void *)
long	onCmdHide (FXObject *, FXSelector, void *)
long	onUpdToggleShown (FXObject *, FXSelector, void *)
long	onCmdToggleShown (FXObject *, FXSelector, void *)
long	onCmdRaise (FXObject *, FXSelector, void *)
long	onCmdLower (FXObject *, FXSelector, void *)
long	onCmdEnable (FXObject *, FXSelector, void *)
long	onCmdDisable (FXObject *, FXSelector, void *)
long	onUpdToggleEnabled (FXObject *, FXSelector, void *)
long	onCmdToggleEnabled (FXObject *, FXSelector, void *)
long	onCmdUpdate (FXObject *, FXSelector, void *)
long	onUpdYes (FXObject *, FXSelector, void *)
long	onCmdDelete (FXObject *, FXSelector, void *)
	FXWindow (FXComposite *p, FXuint opts=0, FXint x=0, FXint y=0, FXint w=0, FXint h=0)
	Constructor.
FXWindow *	getParent () const
	Return a pointer to the parent window.
FXWindow *	getOwner () const
	Return a pointer to the owner window.
FXWindow *	getNext () const
	Return a pointer to the next (sibling) window, if any.
FXWindow *	getPrev () const
	Return a pointer to the previous (sibling) window , if any.
FXWindow *	getFirst () const
	Return a pointer to this window's first child window , if any.
FXWindow *	getLast () const
	Return a pointer to this window's last child window, if any.
FXWindow *	getFocus () const
	Return a pointer to the currently focused child window.
FXWindow *	getShell () const
	Return a pointer to the shell window.
FXWindow *	getRoot () const
	Return a pointer to the root window.
virtual WindowClass	getWindowClass () const
	Get window class.
void	setKey (FXuint k)
	Change window key.
FXuint	getKey () const
	Return window key.
FXWindow *	getChildWithKey (FXuint k) const
	Return child window with given window key.
void	setTarget (FXObject *t)
	Set the message target object for this window.
FXObject *	getTarget () const
	Get the message target object for this window, if any.
void	setSelector (FXSelector sel)
	Set the message identifier for this window.
FXSelector	getSelector () const
	Get the message identifier for this window.
FXint	getX () const
	Get this window's x-coordinate, in the parent's coordinate system.
FXint	getY () const
	Get this window's y-coordinate, in the parent's coordinate system.
virtual FXint	getWidthForHeight (FXint givenheight)
	Return width for given height.
virtual FXint	getHeightForWidth (FXint givenwidth)
	Return height for given width.
void	setX (FXint x)
	Set this window's x-coordinate, in the parent's coordinate system.
void	setY (FXint y)
	Set this window's y-coordinate, in the parent's coordinate system.
void	setWidth (FXint w)
	Set the window width; and flag the widget as being in need of layout by its parent. More...
void	setHeight (FXint h)
	Set the window height; and flag the widget as being in need of layout by its parent. More...
void	setLayoutHints (FXuint lout)
	Set layout hints for this window.
FXuint	getLayoutHints () const
	Get layout hints for this window.
FXAccelTable *	getAccelTable () const
	Return a pointer to the accelerator table.
void	setAccelTable (FXAccelTable *acceltable)
	Set the accelerator table.
void	addHotKey (FXHotKey code)
	Add a hot key.
void	remHotKey (FXHotKey code)
	Remove a hot key.
void	setHelpTag (const FXString &text)
	Change help tag for this widget.
const FXString &	getHelpTag () const
	Get the help tag for this widget.
FXbool	isShell () const
	Return true if window is a shell window.
FXbool	isOwnerOf (const FXWindow *window) const
	Return true if specified window is owned by this window.
FXbool	isChildOf (const FXWindow *window) const
	Return true if specified window is ancestor of this window.
FXbool	containsChild (const FXWindow *child) const
	Return true if this window contains child in its subtree.
FXWindow *	getChildAt (FXint x, FXint y) const
	Return the child window at specified coordinates.
FXint	numChildren () const
	Return the number of child windows for this window.
FXint	indexOfChild (const FXWindow *window) const
	Return the index (starting from zero) of the specified child window, or -1 if the window is not a child or NULL.
FXWindow *	childAtIndex (FXint index) const
	Return the child window at specified index, or NULL if the index is negative or out of range.
FXComposeContext *	getComposeContext () const
	Return compose context.
void	createComposeContext ()
	Create compose context.
void	destroyComposeContext ()
	Destroy compose context.
FXbool	cursorShown () const
	Is cursor shown.
void	showCursor (FXbool flag=true)
	Show or hide the cursor.
void	setDefaultCursor (FXCursor *cur)
	Set the default cursor for this window.
FXCursor *	getDefaultCursor () const
	Return the default cursor for this window.
void	setDragCursor (FXCursor *cur)
	Set the drag cursor for this window.
FXCursor *	getDragCursor () const
	Return the drag cursor for this window.
FXbool	getCursorPosition (FXint &x, FXint &y, FXuint &buttons) const
	Return the cursor position and mouse button-state.
FXbool	setCursorPosition (FXint x, FXint y)
	Warp the cursor to the new position.
FXbool	isActive () const
	Return true if the window is active.
FXbool	hasFocus () const
	Return true if this window has the focus.
FXbool	inFocusChain () const
	Return true if this window is in focus chain.
FXbool	isDefault () const
	Return true if this is the default window.
virtual void	setDefault (FXuchar flag=true)
	This changes the default window which responds to the Return key in a dialog. More...
FXWindow *	findDefault () const
	Find default window among this window's children.
FXbool	isInitial () const
	Return true if this is the initial default window.
void	setInitial (FXbool flag=true)
	Make this window the initial default window.
FXWindow *	findInitial () const
	Find inital default window among this window's children.
FXbool	isEnabled () const
	Return true if this window is able to receive mouse and keyboard events.
virtual void	enable ()
	Enable the window to receive mouse and keyboard events.
virtual void	disable ()
	Disable the window from receiving mouse and keyboard events.
virtual void	attach (FXID w)
	Attach foreign window handle to this window.
virtual void	setShape (const FXRegion &region)
	Set window shape by means of region.
virtual void	setShape (FXBitmap *bitmap)
	Set window shape by means of bitmap.
virtual void	setShape (FXIcon *icon)
	Set window shape by means of icon.
virtual void	clearShape ()
	Clear window shape.
virtual void	raise ()
	Raise this window to the top of the stacking order.
virtual void	lower ()
	Lower this window to the bottom of the stacking order.
virtual void	move (FXint x, FXint y)
	Move the window immediately, in the parent's coordinate system. More...
virtual void	resize (FXint w, FXint h)
	Resize the window to the specified width and height immediately, updating the server representation as well, if the window was realized. More...
virtual void	position (FXint x, FXint y, FXint w, FXint h)
	Move and resize the window immediately, in the parent's coordinate system. More...
void	forceRefresh ()
	Generate a SEL_UPDATE message for the window and its children.
virtual void	reparent (FXWindow *father, FXWindow *other=nullptr)
	Reparent this window under new father before other.
void	scroll (FXint x, FXint y, FXint w, FXint h, FXint dx, FXint dy) const
	Scroll rectangle x,y,w,h by a shift of dx,dy.
void	update (FXint x, FXint y, FXint w, FXint h) const
	Mark the specified rectangle to be repainted later.
void	update () const
	Mark the entire window to be repainted later.
void	repaint (FXint x, FXint y, FXint w, FXint h) const
	Process any outstanding repaint messages immediately, for the given rectangle.
void	repaint () const
	Process any outstanding repaint messages immediately.
FXbool	grabbed () const
	Return true if the window has been grabbed.
void	grab ()
	Grab the mouse to this window; future mouse events will be reported to this window even while the cursor goes outside of this window.
void	ungrab ()
	Release the mouse grab.
FXbool	grabbedKeyboard () const
	Return true if active grab is in effect.
void	grabKeyboard ()
	Grab keyboard device.
void	ungrabKeyboard ()
	Ungrab keyboard device.
FXbool	shown () const
	Return true if the window is shown.
virtual void	show ()
	Show this window.
virtual void	hide ()
	Hide this window.
FXbool	underCursor () const
	Return true if the window is under the cursor.
FXbool	hasSelection () const
	Return true if this window owns the primary selection.
FXbool	acquireSelection (const FXDragType *types, FXuint numtypes)
	Try to acquire the primary selection, given a list of drag types.
FXbool	releaseSelection ()
	Release the primary selection.
FXbool	hasClipboard () const
	Return true if this window owns the clipboard.
FXbool	acquireClipboard (const FXDragType *types, FXuint numtypes)
	Try to acquire the clipboard, given a list of drag types.
FXbool	releaseClipboard ()
	Release the clipboard.
FXbool	isDropEnabled () const
	Return true if this window is able to receive drops.
virtual void	dropEnable ()
	Enable this window to receive drops.
virtual void	dropDisable ()
	Disable this window from receiving drops.
FXbool	isDragging () const
	Return true if a drag operaion has been initiated from this window.
FXbool	beginDrag (const FXDragType *types, FXuint numtypes)
	Initiate a drag operation with a list of previously registered drag types.
FXbool	handleDrag (FXint x, FXint y, FXDragAction action=DRAG_COPY)
	When dragging, inform the drop-target of the new position and the drag action.
FXDragAction	endDrag (FXbool drop=true)
	Terminate the drag operation with or without actually dropping the data Returns the action performed by the target.
FXbool	isDropTarget () const
	Return true if this window is the target of a drop.
void	setDragRectangle (FXint x, FXint y, FXint w, FXint h, FXbool wantupdates=true) const
	When being dragged over, indicate that no further SEL_DND_MOTION messages are required while the cursor is inside the given rectangle.
void	clearDragRectangle () const
	When being dragged over, indicate we want to receive SEL_DND_MOTION messages every time the cursor moves.
void	acceptDrop (FXDragAction action=DRAG_ACCEPT) const
	When being dragged over, indicate acceptance or rejection of the dragged data.
FXDragAction	didAccept () const
	The target accepted our drop.
void	dropFinished (FXDragAction action=DRAG_REJECT) const
	Sent by the drop target in response to SEL_DND_DROP. More...
FXbool	inquireDNDTypes (FXDNDOrigin origin, FXDragType *&types, FXuint &numtypes) const
	When being dragged over, inquire the drag types which are being offered.
FXbool	offeredDNDType (FXDNDOrigin origin, FXDragType type) const
	When being dragged over, return true if we are offered the given drag type.
FXDragAction	inquireDNDAction () const
	When being dragged over, return the drag action.
FXbool	setDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *data, FXuint size) const
	Set DND data; the array must be allocated with allocElms() and ownership is transferred to the system.
FXbool	setDNDData (FXDNDOrigin origin, FXDragType type, const FXString &string) const
	Set DND data from string value.
FXbool	getDNDData (FXDNDOrigin origin, FXDragType type, FXuchar *&data, FXuint &size) const
	Get DND data; the caller becomes the owner of the array and must free it with freeElms().
FXbool	getDNDData (FXDNDOrigin origin, FXDragType type, FXString &string) const
	Get DND data into string value.
virtual FXbool	contains (FXint parentx, FXint parenty) const
	Return true if window logically contains the given point.
void	translateCoordinatesFrom (FXint &tox, FXint &toy, const FXWindow *fromwindow, FXint fromx, FXint fromy) const
	Translate coordinates from fromwindow's coordinate space to this window's coordinate space.
void	translateCoordinatesTo (FXint &tox, FXint &toy, const FXWindow *towindow, FXint fromx, FXint fromy) const
	Translate coordinates from this window's coordinate space to towindow's coordinate space.
virtual void	setBackColor (FXColor clr)
	Set window background color.
FXColor	getBackColor () const
	Get background color.
virtual FXbool	doesSaveUnder () const
	Does save-unders.
virtual const FXchar *	tr (const FXchar *text, const FXchar *hint=nullptr, FXint count=-1) const FX_FORMAT(2)
	Translate message for localization; using the current FXTranslator, an attempt is made to translate the given message into the current language. More...
virtual	~FXWindow ()
	Destroy window.
Public Member Functions inherited from FX::FXDrawable
FXVisual *	getVisual () const
	Get the visual.
FXint	getWidth () const
	Width of drawable.
FXint	getHeight () const
	Height of drawable.
void	setVisual (FXVisual *vis)
	Change visual.
virtual	~FXDrawable ()
	Cleanup.
Public Member Functions inherited from FX::FXId
FXApp *	getApp () const
	Get application.
FXID	id () const
	Get XID handle.
void	setUserData (FXptr ptr)
	Set user data pointer.
FXptr	getUserData () const
	Get user data pointer.
virtual	~FXId ()
	Destructor.
Public Member Functions inherited from FX::FXObject
const FXchar *	getClassName () const
	Get class name of some object.
FXbool	isMemberOf (const FXMetaClass *metaclass) const
	Check if object is member of metaclass.
virtual long	tryHandle (FXObject *sender, FXSelector sel, void *ptr)
	Try handle message safely, catching certain exceptions.
virtual long	onDefault (FXObject *, FXSelector, void *)
	Called for unhandled messages.
virtual	~FXObject ()
	Virtual destructor.

Static Public Member Functions
static FXint	ascending (const FXTreeItem *a, const FXTreeItem *b)
static FXint	descending (const FXTreeItem *a, const FXTreeItem *b)
static FXint	ascendingCase (const FXTreeItem *a, const FXTreeItem *b)
static FXint	descendingCase (const FXTreeItem *a, const FXTreeItem *b)
Static Public Member Functions inherited from FX::FXTreeList
static FXint	ascending (const FXTreeItem *, const FXTreeItem *)
static FXint	descending (const FXTreeItem *, const FXTreeItem *)
static FXint	ascendingCase (const FXTreeItem *, const FXTreeItem *)
static FXint	descendingCase (const FXTreeItem *, const FXTreeItem *)
Static Public Member Functions inherited from FX::FXWindow
static FXWindow *	commonAncestor (FXWindow *a, FXWindow *b)
	Return the common ancestor of window a and window b.
static FXbool	before (const FXWindow *a, const FXWindow *b)
	Return true if sibling a <= sibling b in list.
static FXbool	after (const FXWindow *a, const FXWindow *b)
	Return true if sibling a >= sibling b in list.

Protected Member Functions
void	listItems (FXbool force, FXbool notify)
void	listRootItems (FXbool force, FXbool notify)
FXbool	listChildItems (FXDirItem *par, FXbool force, FXbool notify)
FXString	getSelectedFiles () const
virtual FXTreeItem *	createItem (const FXString &text, FXIcon *oi, FXIcon *ci, void *ptr)
FXTreeItem *	expandPath (const FXString &path, FXbool notify)
Protected Member Functions inherited from FX::FXTreeList
void	sort (FXTreeItem *&f1, FXTreeItem *&t1, FXTreeItem *&f2, FXTreeItem *&t2, int n)
void	recompute ()
Protected Member Functions inherited from FX::FXScrollArea
	FXScrollArea (FXComposite *p, FXuint opts, FXint x, FXint y, FXint w, FXint h)
virtual void	moveContents (FXint x, FXint y)
FXbool	startAutoScroll (FXEvent *event, FXbool onlywheninside=false)
void	stopAutoScroll ()
void	placeScrollBars (FXint vw, FXint vh)
Protected Member Functions inherited from FX::FXComposite
	FXComposite (FXApp *a, FXVisual *vis)
	FXComposite (FXApp *a, FXWindow *own, FXuint opts, FXint x, FXint y, FXint w, FXint h)
Protected Member Functions inherited from FX::FXWindow
virtual FXbool	doesOverrideRedirect () const
void	addColormapWindows ()
void	remColormapWindows ()
	FXWindow (FXApp *a, FXVisual *vis)
	FXWindow (FXApp *a, FXWindow *own, FXuint opts, FXint x, FXint y, FXint w, FXint h)
Protected Member Functions inherited from FX::FXDrawable
	FXDrawable (FXApp *a, FXint w, FXint h)
Protected Member Functions inherited from FX::FXId
	FXId (FXApp *a)

Protected Attributes
FXFileAssociations *	associations
FXDirItem *	list
FXIcon *	opendiricon
FXIcon *	closeddiricon
FXIcon *	documenticon
FXIcon *	applicationicon
FXIcon *	cdromicon
FXIcon *	harddiskicon
FXIcon *	networkicon
FXIcon *	floppyicon
FXIcon *	zipdiskicon
FXString	pattern
FXString	dropdirectory
FXString	dragfiles
FXString	dropfiles
FXDragAction	dropaction
FXuint	matchmode
FXuint	counter
FXbool	draggable
Protected Attributes inherited from FX::FXTreeList
FXTreeItem *	firstitem
FXTreeItem *	lastitem
FXTreeItem *	anchoritem
FXTreeItem *	currentitem
FXTreeItem *	extentitem
FXTreeItem *	viewableitem
FXFont *	font
FXTreeListSortFunc	sortfunc
FXColor	textColor
FXColor	selbackColor
FXColor	seltextColor
FXColor	lineColor
FXint	treeWidth
FXint	treeHeight
FXint	visible
FXint	indent
FXint	grabx
FXint	graby
FXString	lookup
FXString	tip
FXString	help
FXbool	state
Protected Attributes inherited from FX::FXScrollArea
FXScrollBar *	horizontal
FXScrollBar *	vertical
FXScrollCorner *	corner
FXint	pos_x
FXint	pos_y
Protected Attributes inherited from FX::FXWindow
FXComposeContext *	composeContext
FXCursor *	defaultCursor
FXCursor *	dragCursor
FXAccelTable *	accelTable
FXObject *	target
FXSelector	message
FXint	xpos
FXint	ypos
FXColor	backColor
FXString	tag
FXuint	flags
FXuint	options
Protected Attributes inherited from FX::FXDrawable
FXVisual *	visual
FXint	width
FXint	height
Protected Attributes inherited from FX::FXId
FXID	xid

Additional Inherited Members
Static Public Attributes inherited from FX::FXWindow
static FXDragType	octetType
static FXDragType	deleteType
static FXDragType	textType
static FXDragType	colorType
static FXDragType	urilistType
static FXDragType	utf8Type
static FXDragType	utf16Type
static FXDragType	actionType
static const FXDragType	stringType
static const FXDragType	imageType
static const FXchar	octetTypeName []
static const FXchar	deleteTypeName []
static const FXchar	textTypeName []
static const FXchar	colorTypeName []
static const FXchar	urilistTypeName []
static const FXchar	utf8TypeName []
static const FXchar	utf16TypeName []
static const FXchar	actionTypeName []
Protected Types inherited from FX::FXWindow
enum	{   FLAG_SHOWN = 0x00000001, FLAG_ENABLED = 0x00000002, FLAG_UPDATE = 0x00000004, FLAG_DROPTARGET = 0x00000008,   FLAG_FOCUSED = 0x00000010, FLAG_DIRTY = 0x00000020, FLAG_RECALC = 0x00000040, FLAG_TIP = 0x00000080,   FLAG_HELP = 0x00000100, FLAG_DEFAULT = 0x00000200, FLAG_INITIAL = 0x00000400, FLAG_SHELL = 0x00000800,   FLAG_ACTIVE = 0x00001000, FLAG_PRESSED = 0x00002000, FLAG_KEY = 0x00004000, FLAG_CARET = 0x00008000,   FLAG_CHANGED = 0x00010000, FLAG_LASSO = 0x00020000, FLAG_TRYDRAG = 0x00040000, FLAG_DODRAG = 0x00080000,   FLAG_SCROLLINSIDE = 0x00100000, FLAG_SCROLLING = 0x00200000, FLAG_OWNED = 0x00400000, FLAG_CURSOR = 0x00800000 }

Detailed Description

A Directory List widget provides a tree-structured view of the file system.

It automatically updates itself periodically by re-scanning the file system for any changes. As it scans the displayed directories and files, it automatically determines the icons to be displayed by consulting the file-associations registry settings. A number of messages can be sent to the Directory List to control the filter pattern, sorting order, case sensitivity, and hidden file display mode. The Directory list widget supports drags and drops of files.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
ID_HIDE_FILES	Show files.
ID_TOGGLE_FILES	Hide files.
ID_SHOW_HIDDEN	Toggle show files.
ID_HIDE_HIDDEN	Show hidden files.
ID_TOGGLE_HIDDEN	Hide hidden files.
ID_SET_PATTERN	Toggle display of hidden files.
ID_SORT_REVERSE	Set match pattern.
ID_SORT_CASE	Reverse sort order.
ID_REFRESH	Toggle sort case sensitivity.
ID_DELETE_SEL	Refresh immediately.
ID_LAST	Delete selected files.

---

The documentation for this class was generated from the following file:

• /home/jeroen/FOX/fox/fox-1.7.86/include/FXDirList.h
