FX::FXGLShape Class Reference

OpenGL Shape Object. More...

#include <FXGLShape.h>

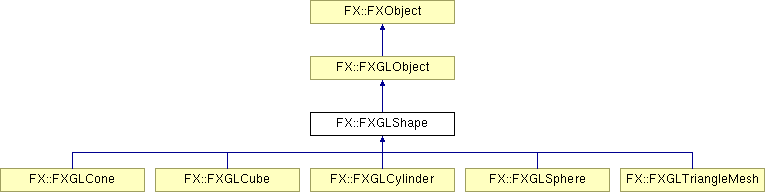

Inheritance diagram for FX::FXGLShape:

List of all members.

Public Member Functions
	FXGLShape (FXfloat x, FXfloat y, FXfloat z, FXuint opts)
	FXGLShape (FXfloat x, FXfloat y, FXfloat z, FXuint opts, const FXMaterial &front, const FXMaterial &back)
	FXGLShape (const FXGLShape &orig)
virtual void	bounds (FXRangef &box)
virtual void	draw (FXGLViewer *viewer)
virtual void	hit (FXGLViewer *viewer)
virtual FXGLObject *	copy ()
virtual FXbool	canDrag () const
virtual FXbool	canDelete () const
virtual FXbool	drag (FXGLViewer *viewer, FXint fx, FXint fy, FXint tx, FXint ty)
void	setTipText (const FXString &text)
FXString	getTipText () const
void	setMaterial (FXint side, const FXMaterial &mtl)
void	getMaterial (FXint side, FXMaterial &mtl) const
virtual void	save (FXStream &store) const
virtual void	load (FXStream &store)

---

Detailed Description

OpenGL Shape Object.

See also:

• Shape drawing options.

---

Constructor & Destructor Documentation

FX::FXGLShape::FXGLShape (  FXfloat  x, FXfloat  y, FXfloat  z, FXuint  opts )

Construct with specified origin and options.

FX::FXGLShape::FXGLShape (  FXfloat  x, FXfloat  y, FXfloat  z, FXuint  opts, const FXMaterial &  front, const FXMaterial &  back )

Construct with specified origin, options and front and back materials.

FX::FXGLShape::FXGLShape (  const FXGLShape &  orig  )

Copy constructor.

---

Member Function Documentation

virtual void FX::FXGLShape::bounds (  FXRangef &  box  )  [virtual]

Called by the viewer to get bounds for this object. Reimplemented from FX::FXGLObject.

virtual void FX::FXGLShape::draw (  FXGLViewer *  viewer  )  [virtual]

Draw this object in a viewer. Reimplemented from FX::FXGLObject.

virtual void FX::FXGLShape::hit (  FXGLViewer *  viewer  )  [virtual]

Draw this object for hit-testing purposes. Reimplemented from FX::FXGLObject.

virtual FXGLObject* FX::FXGLShape::copy (   )  [virtual]

Copy this object. Reimplemented from FX::FXGLObject. Reimplemented in FX::FXGLCone, FX::FXGLCube, FX::FXGLCylinder, FX::FXGLSphere, and FX::FXGLTriangleMesh.

virtual FXbool FX::FXGLShape::canDrag (   )  const [virtual]

Return true if this object can be dragged around. Reimplemented from FX::FXGLObject.

virtual FXbool FX::FXGLShape::canDelete (   )  const [virtual]

Return true if this object can be deleted from the scene. Reimplemented from FX::FXGLObject.

virtual FXbool FX::FXGLShape::drag (  FXGLViewer *  viewer, FXint  fx, FXint  fy, FXint  tx, FXint  ty )  [virtual]

Drag this object from one position to another. Reimplemented from FX::FXGLObject.

void FX::FXGLShape::setTipText (  const FXString &  text  )  [inline]

Set the tool tip message for this object.

FXString FX::FXGLShape::getTipText (   )  const [inline]

Get the tool tip message for this object.

void FX::FXGLShape::setMaterial (  FXint  side, const FXMaterial &  mtl )

Set the material for specified side (where side = 0 or 1).

void FX::FXGLShape::getMaterial (  FXint  side, FXMaterial &  mtl )  const

Get the material for specified side (where side = 0 or 1).

virtual void FX::FXGLShape::save (  FXStream &  store  )  const [virtual]

Save shape to a stream. Reimplemented from FX::FXObject. Reimplemented in FX::FXGLCone, FX::FXGLCube, FX::FXGLCylinder, FX::FXGLSphere, and FX::FXGLTriangleMesh.

virtual void FX::FXGLShape::load (  FXStream &  store  )  [virtual]

Load shape from a stream. Reimplemented from FX::FXObject. Reimplemented in FX::FXGLCone, FX::FXGLCube, FX::FXGLCylinder, FX::FXGLSphere, and FX::FXGLTriangleMesh.
