FX::FXWizard Class Reference

A Wizard widget guides the user through a number of panels in a predefined sequence; each step must be completed before moving on to the next step. More...

#include <FXWizard.h>

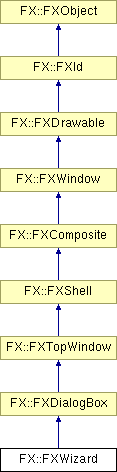

Inheritance diagram for FX::FXWizard:

FX::FXDialogBox FX::FXTopWindow FX::FXShell FX::FXComposite FX::FXWindow FX::FXDrawable FX::FXId FX::FXObject List of all members.

Public Member Functions

 FXWizard (FXApp *a, const FXString &name, FXImage *image, FXuint opts=DECOR_TITLE|DECOR_BORDER|DECOR_RESIZE, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=10, FXint pr=10, FXint pt=10, FXint pb=10, FXint hs=10, FXint vs=10)
 FXWizard (FXWindow *owner, const FXString &name, FXImage *image, FXuint opts=DECOR_TITLE|DECOR_BORDER|DECOR_RESIZE, FXint x=0, FXint y=0, FXint w=0, FXint h=0, FXint pl=10, FXint pr=10, FXint pt=10, FXint pb=10, FXint hs=10, FXint vs=10)
FXHorizontalFrame * buttonFrame () const
FXButton * advanceButton () const
FXButton * retreatButton () const
FXButton * finishButton () const
FXButton * cancelButton () const
FXSwitcher * getContainer () const
void setImage (FXImage *img)
FXImage * getImage () const
FXint getNumPanels () const
void setCurrentPanel (FXint index)
FXint getCurrentPanel () const
virtual void save (FXStream &store) const
virtual void load (FXStream &store)

Detailed Description

A Wizard widget guides the user through a number of panels in a predefined sequence; each step must be completed before moving on to the next step.

For example, a Wizard may be used to install software components, and ask various questions at each step in the installation.

Constructor & Destructor Documentation

FX::FXWizard::FXWizard (  FXApp *  a,
const FXString &  name,
FXImage *  image,
FXuint  opts = DECOR_TITLE|DECOR_BORDER|DECOR_RESIZE,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = 10,
FXint  pr = 10,
FXint  pt = 10,
FXint  pb = 10,
FXint  hs = 10,
FXint  vs = 10
)


Construct free-floating Wizard.

FX::FXWizard::FXWizard (  FXWindow *  owner,
const FXString &  name,
FXImage *  image,
FXuint  opts = DECOR_TITLE|DECOR_BORDER|DECOR_RESIZE,
FXint  x = 0,
FXint  y = 0,
FXint  w = 0,
FXint  h = 0,
FXint  pl = 10,
FXint  pr = 10,
FXint  pt = 10,
FXint  pb = 10,
FXint  hs = 10,
FXint  vs = 10
)


Construct Wizard which will always float over the owner window.

Member Function Documentation

FXHorizontalFrame* FX::FXWizard::buttonFrame (   )  const [inline]


Return a pointer to the button frame.

FXButton* FX::FXWizard::advanceButton (   )  const [inline]


Return a pointer to the "Advance" button.

FXButton* FX::FXWizard::retreatButton (   )  const [inline]


Return a pointer to the "Retreat" button.

FXButton* FX::FXWizard::finishButton (   )  const [inline]


Return a pointer to the "Finish" button.

FXButton* FX::FXWizard::cancelButton (   )  const [inline]


Return a pointer to the "Cancel" button.

FXSwitcher* FX::FXWizard::getContainer (   )  const [inline]


Return the container used as parent for the subpanels.

void FX::FXWizard::setImage (  FXImage *  img  )


Change the image being displayed.

FXImage* FX::FXWizard::getImage (   )  const


Return the current image.

FXint FX::FXWizard::getNumPanels (   )  const


Return number of panels.

void FX::FXWizard::setCurrentPanel (  FXint  index  )


Bring the child window at index to the top.

FXint FX::FXWizard::getCurrentPanel (   )  const


Return the index of the child window currently on top.

virtual void FX::FXWizard::save (  FXStream &  store  )  const [virtual]


Save to stream.

Reimplemented from FX::FXTopWindow.

virtual void FX::FXWizard::load (  FXStream &  store  )  [virtual]


Load from stream.

Reimplemented from FX::FXTopWindow.
